    MSS-SP-114 Stainless Steel Threaded 90° Street Elbow

    Thread Type:
    NPT
    Pressure Ratings:
    150 lbs
    NPS:
    1/8"
    1/4"
    3/8"
    1/2 "
    3/4"
    1"
    1-1/4"
    1-1/2"
    2"
    2-1/2 "
    3"
    4"
    Material：:
    304
    304L
    316
    316L
    Custom
    Quantity:
    Contact Now
    add to cart
    MSS SP-114 90° Male And Female Elbow
    Standard: ANSI/MSS SP-114
    Threads Standard: ASME B1.20.1
    Cast Stainless Steel Material Standard: ASME A351, GB/T 2100, EN 10213, JIS G5121
    Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
    Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

    Product Overview

    Upgrade your piping system with our High-Grade 304 Stainless Steel Threaded Elbows. Designed for both industrial and residential applications, these fittings offer a perfect balance of durability, precision, and corrosion resistance. Whether you are redirecting flow at a 90° angle, our connectors ensure a leak-proof and secure fit for long-term reliability.

    Key Features

    • Premium 304 Stainless Steel: Engineered with industrial-grade SS304 for superior rust resistance and anti-oxidation properties, even in humid or harsh environments.
    • Precision Threading: Available in multiple sizes with high-precision threads (Female/Male) to ensure a tight, seamless connection with standard pipes.
    • Built for Extremes: Designed to withstand pressures up to 150 lb and temperatures ranging from -50°C to 150°C.
    • Multi-Media Compatibility: Suitable for a wide range of media including water, gas, oil, and other non-corrosive fluids.

    Dimensions & Sizes

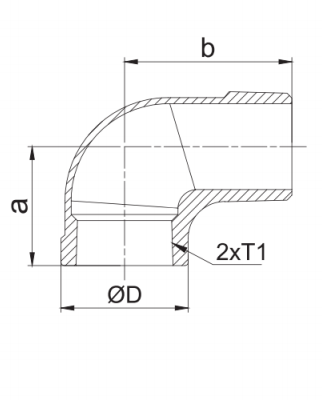

    female male elbow

    Size T1DNODab
    1/8"614.51727
    1/4"8181928
    3/8"10212332
    1/2"1526.52737
    3/4"20323243
    1"2539.53752
    1-1/4"3248.54359
    1-1/2"40554864
    2"50675674
    2-1/2"65846989
    3"809878100
    4"100124.594120

    *tolerance：1/8"~2"ab-0.6mm、2-1/2"~4"a b-1.2mm

    Why Shop With Us?

    • Custom Sizes Available: Don’t see the size you need? Contact us for more information on custom orders and additional specifications.
    • Fast Support: Have questions? Our technical team is ready to help. We aim to respond to all inquiries as quickly as possible.
    • Quality Guaranteed: We stand behind the quality of our stainless steel hardware. Happy Shopping!
