    MSS-SP-114 Stainless Steel Threaded 45° Elbow

    Thread Type:
    NPT
    Pressure Ratings:
    150 lbs
    NPS:
    1/8"
    1/4"
    3/8"
    1/2 "
    3/4"
    1"
    1-1/4"
    1-1/2"
    2"
    2-1/2 "
    3"
    4"
    Material：:
    304
    304L
    316
    316L
    Custom
    Quantity:
    Contact Now
    add to cart
    MSS SP-114 45° Elbow
    Standard: ANSI/MSS SP-114
    Threads Standard: ASME B1.20.1
    Cast Stainless Steel Material Standard: ASME A351, GB/T 2100, EN 10213, JIS G5121
    Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
    Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

    Product Overview

    Upgrade your piping system with our High-Grade 304 Stainless Steel Threaded Elbows. Designed for both industrial and residential applications, these fittings offer a perfect balance of durability, precision, and corrosion resistance. Whether you are redirecting flow at a 45° or 90° angle, our connectors ensure a leak-proof and secure fit for long-term reliability.

    Key Features

    • Premium 304 Stainless Steel: Engineered with industrial-grade SS304 for superior rust resistance and anti-oxidation properties, even in humid or harsh environments.
    • Precision Threading: Available in multiple sizes with high-precision threads (Female/Male) to ensure a tight, seamless connection with standard pipes.
    • Built for Extremes: Designed to withstand pressures up to 150 lb and temperatures ranging from -50°C to 150°C.
    • Multi-Media Compatibility: Suitable for a wide range of media including water, gas, oil, and other non-corrosive fluids.

    Technical Specifications

    FeatureDetails
    Material304 Stainless Steel
    Angle45 Degree
    ConnectionFemale Thread
    Thread Sizes1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4"
    Max Pressure150 lb
    Temp Range-50°C to 150°C
    MediaWater, Gas, Oil, etc.

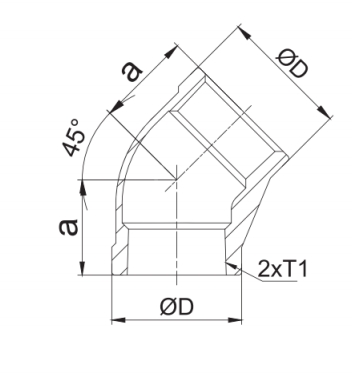

    Dimensions & Sizes

    cast-threaded-female-threaded-45-elbow-stainless-dimensions

    Size T1DNØDa
    1/8"614.516
    1/4"81817
    3/8"102119
    1/2"1526.521
    3/4"203225
    1"2539.529
    1-1/4"3248.533
    1-1/2"405537
    2"506742
    2-1/₂"658449
    3"809854
    4"100124.564

    *tolerance:1/8"~2"ab-0.6mm、2-1/2"~4"ab-1.2mm*
