2"×1/2" Mechanical Tee Threaded outlet Orange Paint Coating Pipe Fitting UL/FM XGQT3S

OD:
60.3
73
76.1
88.9
108
114.3
133
139.7
141.3
159
165.1
168.3
219.1
OD2:
21.3
26.9
33.7
42.4
48.3
60.3
73
76.1
88.9
108
114.3
Quantity:
Contact Now
add to cart
UL/FM Mechanical Tee Threaded outlet Orange XGQT3S
Approvals: UL certified , FM approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

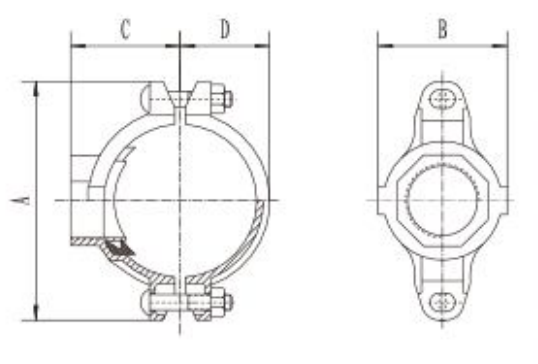

mechanical tee threaded

Dimensions & Sizes

Nominal Size
mm/in		Pipe OD.
  mm/in		Working
Pressure
psi/Mpa		Hole Dia.
Mm/in
+1.6,0/+0.063,0		Dimensions mm/inBolt Size
50×15
2×1/2		60.3×21.3
2.375×0.825		300 psi
2.07 Mpa		30
1.18		116
4.57		68
2.68		58
2.28		40
1.57		3/8*55-2
50×20
2×3/4		60.3×26.9
2.375×1.050		30
1.18		116
4.57		68
2.68		58
2.28		39
1.53		3/8*55-2
50×25
2×1		60.3×33.7
2.375×1.315		38
1.50		118
4.64		71
2.80		58
2.36		40
1.57		3/8*55-2
50×32
2×1-1/4		60.3×42.4
2.375×1.660		46
1.81
118
4.64		75
2.95		60
2.56		40
1.57		3/8*55-2
50×40
2×1-1/2		60.3×48.3
2.375×1.900		46
1.81
118
4.64		75
2.95		63
2.56		40
1.57		3/8*55-2
65×15
2-1/2×1/2		73.0×21.3
2.875×0.825		30
1.18		144
5.66		71
2.80		66
2.72		49
1.93		3/8*55-2
65×20
2-1/2×3/4		73.0×26.9
2.875×1.050		30
1.18		144
5.66		71
2.80		66
2.72		49
1.93		3/8*55-2
 65×25
 2-1/2 ×1		73.0×33.7
2.875×1.315		38
1.50		133
5.23		72
2.83		67
2.72		47
1.85		3/8*55-2
65×32
2-1/2×1-1/4		73.0×42.4
2.875×1.660		46
1.81		133523 81
3.18		69
2.87		47
1.85		3/8*55-2
   65×40
2-1/2×1-1/2		73.0×48.3
2.875×1.900		53
2.08		133
5.23		86
3.38		69
2.87		47
1.85		3/8*55-2
65×15
2-1/2×1/2		76.1×21.3
3.000×0.825		30
1.18		137
5.39		71
2.80		68
2.72
49.5
1.95		3/8*55-2
65×20
2-1/2×3/4		76.1×26.9
3.000×1.050		30
1.18		137
5.39		71
2.80		68
2.72		49.5
1.95		3/8*55-2
 65×25
 2-1/2 ×1		76.1×33.7
3.000×1.315		38
1.50		136
5.35		72
2.83		69
2.72		49
1.93		3/8*55-2
65×32
2-1/2×1-1/4		76.1×42.4
3.000×1.660		46
1.81		136
5.35		81
3.18		71
2.72		49
1.93		3/8*55-2
   65×40
2-1/2×1-1/2		76.1×48.3
3.000×1.900		53
2.08		136
5.35		86
3.38		71
2.72		49.
1.93		3/8*55-2
80×15
3×1/2		88.9×21.3
3.500×0.825		30
1.18		152
5.98		72.5
2.85		74
3.15		56.5
2.22		3/8*55-2
80×20
3×3/4		88.9×26.9
3.500×1.050		30
1.18		152
5.98		72.5
2.85		74
3.15		56.5
2.22		3/8*55-2
80×25
3×1		88.9×33.7
3.500×1.315		38
1.50		150
5.98		73
2.87		75
3.15		56
2.20		3/8*55-2
80×32
3×1-1/4		88.9×42.4
3.500×1.660		46
1.81		150
5.98		82
3.22		77
3.15		56
2.20		3/8*55-2
80×40
3×1-1/2		88.9×48.3
3.500×1.900		53
2.08		150
5.90		87
3.42		77
3.15		56
2.20		3/8*55-2
80×50
3×2		88.9×60.3
3.500×2.375		61
2.40		150
5.90		100
3.93		81
3.15		56
2.20		3/8*55-2
100×25
4×1		108.0×33.7
4.250×1.315		38
1.50		172
6.77		78.5
3.09		87
3.43		64.5
2.54		1/2*65-2
100×32
  4×1-1/4		108.0×42.4
4.250×1.660		46
1.81		172
6.77		89
3.50		87
3.43		64.5
2.54		1/2*65-2
 100×40
 4×1-1/2		108.0×48.3
4.250×1.900		53
2.08		172
6.77		89
3.50		87
3.43		64.5
2.54		1/2*65-2
100×50
4×2		108.0×60.3
4.250×2.375		61
2.40		172
6.77		106.5
4.19		92
3.62		64.5
2.54		1/2*65-2
 100×65
 4×2-1/2		108.0×76.1
4.250×3.000		81
3.18		172
6.77		106.5
4.19		96
3.78		64.5
2.54		1/2*65-2
100×80
4×3		108.0×88.9
4.250×3.500		86
3.38		172
6.77		106.5
4.19		100
3.94		64.5
2.54		1/2*65-2
100×25
4×1		114.3×33.7
4.500×1.315		38
1.50		182
7.16		73
2.87		89
3.66		70
2.76		1/2*65-2
100×32
  4×1-1/4		114.3×42.4
4.500×1.660		46
1.81		182
7.16		82
3.22		90
3.74		70
2.76		1/2*65-2
 100×40
 4×1-1/2		114.3×48.3
4.500×1.900		53
2.08		182
7.16		87
3.42		90
3.82		70
2.76		1/2*65-2
100×50
4×2		114.3×60.3
4.500×2.375		61
2.40		182
7.16		100
3.93		95
3.62		70
2.76		1/2*65-2
 100×65
 4×2-1/2		114.3×73.0
4.500×2.875		81
3.18		182
7.16		118
4.64		94
4.02		70
2.76		1/2*65-2
 100×65
 4×2-1/2		114.3×76.1
4.500×3.000		81
3.18		182
7.16		118
4.64		94
4.02		70
2.76		1/2*65-2
100×80
4×3		114.3×88.9
4.500×3.500		86
3.38		182
7.16		124
4.88		100
4.02		70
2.76		1/2*65-2
125×25
5×1		133.0×33.7
5.250×1.315		38
1.50		208
8.18		74
2.91		100
4.13		79
3.11		1/2*75-2
125×32
5×1-1/4		133.0×42.4
5.250×1.660		46
1.81		208
8.18		83
3.26		101
4.13		79
3.11		1/2*75-2
125×40
5×1-1/2		133.0×48.3
5.250×1.900		53
2.08		208
8.18		88
3.46		101
4.13		79
3.11		1/2*75-2
125×50
5×2		133.0×60.3
5.250×2.375		61
2.40		208
8.18		102
4.01		105
4.33		79
3.11		1/2*75-2
125×65
5×2-1/2		133.0×76.1
5.250×3.000		81
3.18		208
8.18		119
4.68		103
4.53		79
3.11		1/2*75-2
125×80
5×3		133.0×88.9
5.250×3.500		86
3.38		208
8.18		134
5.27		110
4.65		79
3.11		1/2*75-2
125×25
  5×1		139.7×33.7
5.500×1.315		38
1.50		215
8.46		74
2.91		103
4.33		83
3.26		  1/2*75-2
125×32
5×1-1/4		139.7×42.4
5.500×1.660		46
1.81		215
8.46		83
3.26		104
4.41		83
3.26		  1/2*75-2
125×40
5×1-1/2		139.7×48.3
5.500×1.900		53
2.08		215
8.46		88
3.46		104
4.41		83
3.26		  1/2*75-2
125×50
5×2		139.7×60.3
5.500×2.375		61
2.40		215
8.46		102
4.01		108
4.53		83
3.26		  1/2*75-2
125×65
5×2-1/2		139.7×76.1
5.500×3.000		81
3.18		215
8.46		119
4.68		108
4.53		83
3.26		  1/2*75-2
125×80
5×3		139.7×88.9
5.500×3.500		86
3.38		215
8.46		134
5.27		4.12 83
3.26		  1/2*75-2
125×25
5×1		141.3×33.7
5.563×1.315		38
1.50		215
8.46		74
2.91		103
4.33		84
3.31		  1/2*75-2
125×32
5×1-1/4		141.3×42.4
5.563×1.660		46
1.81		215
8.46		83
3.26		104
4.41		84
3.31		  1/2*75-2
125×40
5×1-1/2		141.3×48.3
5.563×1.900		  53
2.00		215
8.46		88
3.46		104
4.41		84
3.31		  1/2*75-2
125×50
5×2		141.3×60.3
5.563×2.375		61
2.40		215
8.46		102
4.01		108
4.53		83
3.26		  1/2*75-2
125×65
5×2-1/2		141.3×76.1
5.563×3.000		81
3.18		215
8.46		119
4.64		108
4.53		83
3.26		  1/2*75-2
125×80
5×3		141.3×88.9
5.563×3.500		86
3.38		215
8.46		5.24 114
4.72		83
3.26		  1/2*75-2
150×25
6×1		159.0×33.7
6.250×1.315		38
1.50		244
9.60		78
3.07		4.59 94
3.70		  9/16*75-2
150×32
6×1-1/4		159.0×42.4
6.250×1.660		46
1.81		244
9.60		93
3.66		118
4.65		94
3.70		  9/16*75-2
150×40
6×1-1/2		159.0×48.3
6.250×1.900		53
2.08		244
9.60		93
3.66		118
4.65		94
3.70		  9/16*75-2
150×50
6×2		159.0×60.3
6.250×2.375		  61
2.40		9.35   98
3.85		115
4.53		90
3.54		  9/16*75-2
150×65
6×2-1/2		159.0×76.1
6.250×3.000		81
3.18		230
9.05		121
4.76		125
4.92		-90
3.54		  9/16*75-2
150×80
6×3		159.0×88.9
6.250×3.500		3.38 230
9.05		5.2 4.35 90
3.54		  9/16*75-2
150×100
6×4		159.0×114.3
6.250×4.500		114
4.48		230
9.05		155
6.10		130
5.12		90
3.54		  9/16*75-2
150×25
6×1		165.1×33.7
6.500×1.315		38
1.50		240
9.44		74
2.91		117
4.65		96
3.77		  9/16*75-2
150×32
6×1-1/4		165.1×42.4
6.500×1.660		46
1.81		240
9.44		83
3.26		118
4.65		97.5
3.84		  9/16*75-2
150×40
6×1-1/2		165.1×48.3
6.500×1.900		53
2.08		240
9.44		88
3.46		118
4.65		97.5
3.84		  9/16*75-2
150×50
6×2		165.1×60.3
6.500×2.375		61
2.40		240
9.44		102
4.01		120
5.43		96
3.77		  9/16*75-2
150×65
6×2-1/2		165.1×76.1
6.500×3.000		81
3.18		240
9.44		119
4.68		121
5.43		96
3.77		  9/16*75-2
150×80
6×3		165.1×88.9
6.500×3.500		86
3.38		240
9.44		134
5.27		126
5.43		96
3.77		  9/16*75-2
150×100
6×4		165.1×114.3
6.500×4.500		114
4.48		240
9.44		6.22 132
5.32		96
3.77		  9/16*75-2
150×25
6×1		168.3×33.7
6.625×1.315		38
1.50		244
9.60		74
2.91		119
5.12		97
3.81		  9/16*75-2
150×32
6×1-1/4		168.3×42.4
6.625×1.660		46
1.81		244
9.60		83
3.26		120
5.12		98.5
3.88		  9/16*75-2
150×40
6×1-1/2		168.3×48.3
6.625×1.900		53
2.08		244
9.60		88
3.46		120
4.80		98.5
3.88		  9/16*75-2
150×50
6×2		168.3×60.3
6.625×2.375		61
2.40		244
9.60		102
4.01		122
5.20		97
3.81		  9/16*75-2
150×65
6×2-1/2		168.3×73.0
6.625×2.875		81
3.18		244
9.60		119
4.68		123
5.20		97
3.81		  9/16*75-2
150×65
6×2-1/2		168.3×76.1
6.625×3.000		81
3.18		244
9.60		119
4.68		123
5.20		97
3.81		  9/16*75-2
150×80
6×3		168.3×88.9
6.625×3.500		86
3.38		244
9.60		134
5.27		128
5.51		97
3.81		  9/16*75-2
150×100
6×4		168.3×114.3
6.625×4.500		114
4.48		244
9.60		6.52 134
5.51		97
3.81		  9/16*75-2
200×25
8×1		219.1×33.7
8.625×1.315		38
1.50		308
12.12		74
2.91		145
5.91		124
4.88		  5/8*95-2
200×32
8×1-1/4		219.1×42.4
8.625×1.660		46
1.81		308
12.12		83
3.26		146
5.91		124
4.88		  5/8*95-2
200×40
8×1-1/2		219.1×48.3
8.625×1.900		53
2.08		308
12.12		88
3.46		146
5.91		124
4.88		  5/8*95-2
200×50
8×2		219.1×60.3
8.625×2.375		61
2.40		308
12.12		102
4.01		149
6.30		124
4.88		  5/8*95-2
200×65
8×2-1/2		219.1×76.1
8.625×3.000		81
3.18		308
12.12		119
4.68		149
6.24		124
4.88		  5/8*95-2
200×80
8×3		219.1×88.9
8.625×3.500		86
3.38		308
12.12		134
5.27		154
6.30		124
4.88		  5/8*95-2
200×100
8×4		219.1×114.3
8.625×4.500		114
4.48		308
12.12		158
6.22		159
6.30		124
4.88		  5/8*95-2

 This innovative mechanical tee threaded outlet provides efficient branch connections for fire protection systems. The durable mechanical tee threaded design features a distinctive orange coating for high visibility and corrosion protection. UL/FM listed, this versatile mechanical tee threaded outlet enables quick installation without system shutdown or special tools. The precision mechanical tee threaded construction maintains pipe integrity while offering secure branch connections. Designed for sprinkler systems and industrial piping, this reliable mechanical tee threaded outlet ensures optimal flow distribution and pressure retention. The practical mechanical tee threaded configuration allows for flexible piping layouts and leak-proof performance, making it ideal for applications requiring reliable branch connections and efficient system modifications in pressurized environments.
