2"×1" Mechanical Tee Grooved outlet Orange Paint Coating Pipe Fitting UL/FM XGQT3

OD:
60.3
73
76.1
88.9
108
114.3
133
139.7
141.3
159
165.1
168.3
219.1
OD2:
33.7
42.4
48.3
60.3
73
76.1
88.9
108
114.3
Quantity:
Contact Now
add to cart
UL/FM Mechanical Tee Grooved outlet Orange XGQT3
Approvals: UL certified , FM approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

mechanical tee grooved outlet

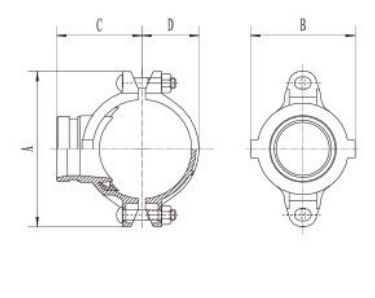

Dimensions & Sizes

Nominal Size
mm/in		  Pipe OD.
   mm/in		Working
Pressure
psi/Mpa		Hole Dia.
Mm/in
+1.6,0/+0.063,0		Dimensions mm/inBolt Size
50×25
2×1		  60.3×33.7
2.375×1.315		  300 psi
  2.07 Mpa		38
1.50		118
4.64		71
2.80		69
2.71		40
1.57		3/8*55-2
50×32
2×1-1/4		  60.3×42.4
2.375×1.660		46
1.81		118
4.64		75
2.95		69
2.71		40
1.57		3/8*55-2
50×40
2×1-1/2		  60.3×48.3
2.375×1.900		46
1.81		118
4.64		75
2.95		69
2.71		40
1.57		3/8*55-2
 65×25
 2-1/2 ×1		  73.0×33.7
2.875×1.315		38
1.50		133
5.23		72
2.83		77
3.03		47
1.85		3/8*55-2
65×32
2-1/2×1-1/4		  73.0×42.4
2.875×1.660		46
1.81		133523 81
3.18		77
3.03		47
1.85		3/8*55-2
   65×40
2-1/2×1-1/2		  73.0×48.3
2.875×1.900		53
2.08		133
5.23		86
3.38		77
3.03		47
1.85		3/8*55-2
65×50
2-1/2 ×2		  76.1×33.7
3.000×1.315		38
1.50		136
5.35		72
2.83		78
3.07		49
1.93		3/8*55-2
65×32
2-1/2×1-1/4		  76.1×42.4
3.000×1.660		46
1.81		136
5.35		81
3.18		78
3.07		49
1.93		3/8*55-2
   65×40
2-1/2×1-1/2		  76.1×48.3
3.000×1.900		53
2.08		136
5.35		86
3.38		78
3.07		49.
1.93		3/8*55-2
80×25
3×1		  88.9×33.7
3.500×1.315		38
1.50		150
5.98		73
2.87		85
3.33		56
2.20		3/8*55-2
 80×32
 3×1-1/4		  88.9×42.4
3.500×1.660		46
1.81		150
5.98		82
3.22		85
3.33		56
2.20		3/8*55-2
80×40
3×1-1/2		  88.9×48.3
3.500×1.900		53
2.08		150
5.90		87
3.42		85
3.33		56
2.20		3/8*55-2
80×50
3×2		  88.9×60.3
3.500×2.375		61
2.40		150
5.90		100
3.93		85
3.33		56
2.20		3/8*55-2
80×65
3×2%		  88.9×73.0
3.500×2.875		61
2.40		150
5.90		100
3.93		85
3.33		56
2.20		3/8*55-2
80×65
3×2-1/2		  88.9×76.1
3.500×3.000		61
2.40		150
5.90		100
3.93		85
3.33		56
2.20		3/8*55-2
100×50
4×2		108.0×60.3
4.250×2.375		61
2.40		172
6.77		106.5
4.19		92
3.78		64.5
2.54		1/2*65-2
100×65
4×2-1/2		108.0×76.1
4.250×3.000		81
3.18		172
6.77		106.5
4.19		92
3.78		64.5
2.54		1/2*65-2
100×25
4×1		114.3×33.7
4.500×1.315		38
1.50		182
7.16		73
2.87		99
3.90		70
2.76		1/2*65-2
100×32
  4×1-1/4		114.3×42.4
4.500×1.660		46
1.81		182
7.16		82
3.22		99
3.90		70
2.76		1/2*65-2
 100×40
 4×1-1/2		114.3×48.3
4.500×1.900		53
2.08		182
7.16		87
3.42		99
3.90		70
2.76		1/2*65-2
100×50
4×2		114.3×60.3
4.500×2.375		61
2.40		182
7.16		100
3.93		99
3.90		70
2.76		1/2*65-2
 100×65
 4×2-1/2		114.3×73.0
4.500×2.875		81
3.18		182
7.16		118
4.64		99
3.90		70
2.76		1/2*65-2
 100×65
 4×2-1/2		114.3×76.1
4.500×3.000		81
3.18		182
7.16		118
4.64		99
3.90		70
2.76		1/2*65-2
100×80
4×3		114.3×88.9
4.500×3.500		86
3.38		182
7.16		124
4.88		99
3.90		70
2.76		1/2*65-2
125×50
5×2		139.7×60.3
5.500×2.375		61
2.40		215
8.46		102
4.01		113
4.44		83
3.26		1/2*75-2
125×65
5×2-1/2		139.7×76.1
5.500×3.000		81
3.18		215
8.46		119
4.68		113
4.44		83
3.26		1/2*75-2
125×80
5×3		139.7×88.9
5.500×3.500		86
3.38		215
8.46		134
5.27		113
4.44		83
3.26		1/2*75-2
   125×100
5×4		139.7×114.3
5.500×4.500		114
4.48		215
8.46		158
6.22		115
4.52		83
3.26		1/2*75-2
125×50
5×2		141.3×60.3
5.563×2.375		61
2.40		215
8.46		102
4.01		114
4.48		83
3.26		1/2*75-2
125×65
5×2-1/2		141.3×76.1
5.563×3.000		81
3.18		215
8.46		119
4.64		114
4.48		83
3.26		1/2*75-2
125×80
5×3		141.3×88.9
5.563×3.500		86
3.38		215
8.46		134
5.27		114
4.48		83
3.26		1/2*75-2
   125×100
5×4		141.3×114.3
5.563×4.500		114
4.48		215
8.46		158
6.22		115
4.52		83
3.26		1/2*75-2
150×50
6×2		159.0×60.3
6.250×2.375		61
2.40		230
9.05		98
3.85		123
4.84		90
3.54		9/16*75-2
150×65
6×2-1/2		159.0×76.1
6.250×3.000		81
3.18		230
9.05		121
4.76		123
4.84		90
3.54		9/16*75-2
150×80
6×3		159.0×88.9
6.250×3.500		86
3.38		230
9.05		134
5.27		123
4.84		90
3.54		9/16*75-2
   150×100
6×4		159.0×108.0
6.250×4.250		114
4.48		230
9.05		155
6.10		123
4.84		90
3.54		9/16*75-2
   150×100
6×4		159.0×114.3
6.250×4.500		114
4.48		230
9.05		155
6.10		123
4.84		90
3.54		9/16*75-2
150×50
6×2		165.1×60.3
6.500×2.375		61
2.40		240
9.44		102
4.01		126
4.96		96
3.77		9/16*75-2
150×65
6×2-1/2		165.1×76.1
6.500×3.000		81
3.18		240
9.44		119
4.68		126
4.96		96
3.77		9/16*75-2
150×80
6×3		165.1×88.9
6.500×3.500		86
3.38		240
9.44		134
5.27		126
4.96		96
3.77		9/16*75-2
150×100
6×4		165.1×114.3
6.500×4.500		114
4.48		240
9.44		158
6.22		128
5.04		96
3.77		9/16*75-2
150×50
6×2		168.3×60.3
6.625×2.375		61
2.40		244
9.60		102
4.01		128
5.04		97
3.81		9/16*75-2
150×65
6×2-1/2		168.3×73.0
6.625×2.875		81
3.18		244
9.60		119
4.68		128
5.04		97
3.81		9/16*75-2
150×65
6×2-1/2		168.3×76.1
6.625×3.000		81
3.18		244
9.60		119
4.68		128
5.04		97
3.81		9/16*75-2
150×80
6×3		168.3×88.9
6.625×3.500		86
3.38		244
9.60		134
5.27		128
5.04		97
3.81		9/16*75-2
   150×100
6×4		168.3×114.3
6.625×4.500		114
4.48		244
9.60		158
6.22		130
5.11		97
3.81		9/16*75-2
200×50
8×2		219.1×60.3
8.625×2.375		61
2.40		308
12.12		102
4.01		153
6.02		124
4.88		5/8*95-2
200×65
8×2-1/2		219.1×76.1
8.625×3.000		81
3.18		308
12.12		 119
4.68		153
6.02		124
4.88		5/8*95-2
200×80
8×3		219.1×88.9
8.625×3.500		86
3.38		308
12.12		 134
5.27		153
6.02		124
4.88		5/8*95-2
200×100
8×4		219.1×114.3
8.625×4.500		114
4.48		308
12.12		158
6.22		155
6.10		124
4.88		5/8*95-2

This innovative mechanical tee grooved outlet provides efficient branch connections for modern piping systems. The durable mechanical tee design features a distinctive orange coating for high visibility and corrosion protection. UL/FM listed, this versatile mechanical tee grooved outlet enables quick installation without system shutdown or special tools. The precision mechanical tee construction maintains pipe integrity while offering secure grooved connections. Designed for fire protection and industrial applications, this reliable mechanical tee grooved outlet ensures optimal flow distribution and pressure retention. The practical mechanical tee configuration allows for flexible piping layouts and leak-proof performance, making it ideal for applications requiring reliable branch connections and efficient system modifications in various pressurized environments.
