2"×1" Grooved Reducing Tee Orange Paint Coating Pipe Fitting UL/FM XGQT04

OD:
33.7
42.4
48.3
60.3
73
76.1
88.9
108
114.3
133
139.7
141.3
159
165.1
168.3
219.1
273
323.9
OD2:
33.7
42.4
48.3
60.3
73
76.1
88.9
108
114.3
133
139.7
141.3
159
165.1
168.3
219.1
273
323.9
Quantity:
Contact Now
add to cart
UL/FM Grooved Reducing Tee Orange XGQT04
Approvals: UL certified , FM approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

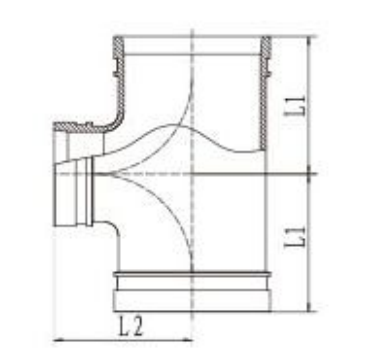

grooved reducing tee

Dimensions & Sizes

Nominal Size
mm/in		Pipe OD.mm/inWorking Pressure
psi/Mpa		Dimensions
L1 mm/in		Dimensions
L2 mm/in
50×25
2×1		60.3×33.7
2.375×1.315		300 psi
2.07 Mpa		70
2.75		70
2.75
50×32
2×1-1/4		60.3×42.4
2.375×1.660		70
2.75		70
2.75
50×40
2×1-1/2		60.3×48.3
2.375×1.900		70
2.75		70
2.75
65×32
2-1/2×1-1/4		73.0×42.4
2.875×1.660		76
3.00		76
3.00
   65×40
2-1/2×1-1/2		73.0×48.3
2.875×1.900		76
3.00		76
3.00
65×50
2-1/2 ×2		73.0×60.3
2.875×2.375		76
3.00		76
3.00
65×32
2-1/2×1-1/4		76.1×42.4
3.000×1.660		76
3.00		76
3.00
   65×40
2-1/2×1-1/2		76.1×48.3
3.000×1.900		76
3.00		76
3.00
65×50
2-1/2 ×2		76.1×60.3
3.000×2.375		76
3.00		76
3.00
80×40
3×1-1/2		88.9×48.3
3.500×1.900		86
3.38		86
3.38
80×50
3×2		88.9×60.3
3.500×2.375		86
3.38		86
3.38
80×65
3×2-1/2		88.9×76.1
3.500×3.000		86
3.38		86
3.38
100×65
4×2-1/2		108.0×76.1
4.250×3.000		101
3.98		101
3.98
100×80
4×3		108.0×88.9
4.250×3.500		101
3.98		101
3.98
100×50
4×2		114.3×60.3
4.500×2.375		101
3.98		101
3.98
100×65
4×2-1/2		114.3×76.1
4.500×3.000		101
3.98		101
3.98
100×80
4×3		114.3×88.9
4.500×3.500		101
3.98		101
3.98
125×50
5×2		133.0×60.3
5.250×2.375		121
4.76		121
4.76
125×65
5×2-1/2		133.0×76.1
5.250×3.000		121
4.76		121
4.76
125×100
5×4		133.0×108.0
5.250×4.250		121
4.76		121
4.76
125×100
5×4		133.0×114.3
5.250×4.500		121
4.76		121
4.76
125×50
5×2		139.7×60.3
5.500×2.375		121
4.76		121
4.76
125×65
5×2-1/2		139.7×76.1
5.500×3.000		121
4.76		121
4.76
125×80
5×3		139.7×88.9
5.500×3.500		121
4.76		121
4.76
125×100
5×4		139.7×114.3
5.500×4.500		121
4.76		121
4.76
125×50
5×2		141.3×60.3
5.563×2.375		121
4.76		121
4.76
125×65
5×2-1/2		141.3×73.0
5.563×2.875		121
4.76		121
4.76
125×65
5×2-1/2		141.3×76.1
5.563×3.000		121
4.76		121
4.76
125×80
5×3		141.3×88.9
5.563×3.500		121
4.76		121
4.76
125×100
5×4		141.3×114.3
5.563×4.500		121
4.76		121
4.76
150×65
6×2-1/2		159.0×76.1
6.250×3.000		140
5.50		140
5.50
150×80
6×3		159.0×88.9
6.250×3.500		140
5.50		140
5.50
150×100
6×4		159.0×108.0
6.250×4.250		140
5.50		140
5.50
150×100
6×4		159.0×114.3
6.250×4.500		140
5.50		140
5.50
150×50
6×2		165.1×60.3
6.500×2.375		140
5.50		140
5.50
150×65
6×2-1/2		165.1×76.1
6.500×3.000		140
5.50		140
5.50
150×80
6×3		165.1×88.9
6.500×3.500		140
5.50		140
5.50
150×100
6×4		165.1×114.3
6.500×4.500		140
5.50		140
5.50
150×125
6×5		165.1×139.7
6.500×5.500		140
5.50		140
5.50
150×50
6×2		168.3×60.3
6.625×2.375		140
5.50		140
5.50
150×65
6×2-1/2		168.3×76.1
6.625×3.000		140
5.50		140
5.50
150×80
6×3		168.3×88.9
6.625×3.500		140
5.50		140
5.50
200×65
8×2-1/2		219.1×76.1
8.625×3.000		175
6.88		175
6.88
200×80
8×3		219.1×88.9
8.625×3.500		175
6.88		175
6.88
200×100
8×4		219.1×108.0
8.625×4.250		175
6.88		175
6.88
200×100
8×4		219.1×114.3
8.625×4.500		175
6.88		175
6.88
200×125
8×5		219.1×139.7
8.625×5.500		175
6.88		175
6.88
200×150
8×6		219.1×159.0
8.625×6.250		175
6.88		175
6.88
200×150
8×6		219.1×165.1
8.625×6.500		175
6.88		175
6.88
200×150
8×6		219.1×168.3
8.625×6.625		175
6.88		175
6.88
250×100
10×4		  273.0×114.3
10.750×4.500		215
8.46		215
8.46
250×125
10×5		  273.0×139.7
10.750×5.500		215
8.46		215
8.46
250×150
10×6		  273.0×165.1
10.750×6.500		215
8.46		215
8.46

This versatile grooved reducing tee provides efficient branch line connections in fire protection and industrial piping systems. The high-visibility tee orange coating ensures easy identification and offers durable corrosion protection. UL/FM listed, this reliable grooved reducing tee accommodates different pipe sizes while maintaining optimal flow performance. The distinctive tee orange finish remains clearly visible in various installation environments. Designed for quick installation without specialized tools, this practical grooved reducing tee ensures secure, leak-proof connections. The bright tee orange color facilitates easy inspection and maintenance. Ideal for sprinkler systems and process piping, this durable grooved reducing tee delivers long-lasting performance in demanding applications where reliable flow distribution and easy identification are essential requirements.
