4"×2" Grooved Eccentric Reducer Orange Paint Coating Pipe Fitting UL/FM XGQT07P

OD:
88.9
108
114.3
133
139.7
141.3
159
165.1
168.3
219.1
OD2:
60.3
73
76.1
88.9
108
114.3
133
139.7
141.3
159
165.1
168.3
Quantity:
Contact Now
add to cart
UL/FM Grooved Eccentric Reducer Orange XGQT07P
Approvals: UL certified , FM approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

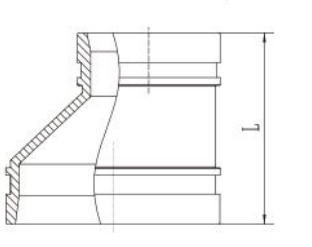

grooved eccentric reducer

Dimensions & Sizes

Nominal Size
mm/in		Pipe OD.
mm/in		Working
Pressure
psi/Mpa		Dimensions
L mm/in
80×50
3×2		88.9×60.3
3.500×2.375		300 psi
2.07 Mpa		89
3.50
100×65
4×2-1/2		108.0×76.1
4.250×3.000		102
4.01
100×80
4×3		108.0×88.9
4.250×3.500		102
4.01
100×50
4×2		114.3×60.3
4.500×2.375		102
4.01
100×65
4×2-1/2		114.3×76.1
4.500×3.000		102
4.01
100×80
4×3		114.3×88.9
4.500×3.500		102
4.01
125×80
5×3		139.7×88.9
5.500×3.500		102
4.01
125×100
5×4		139.7×114.3
5.500×4.500		102
4.01
150×80
6×3		159.0×88.9
6.250×3.500		102
4.01
150×100
6×4		159.0×108.0
6.250×4.250		102
4.01
150×100
6×4		159.0×114.3
6.250×4.500		102
4.01
150×65
6×2-1/2		165.1×76.1
6.500×3.000		102
4.01
150×80
6×3		165.1×88.9
6.500×3.500		102
4.01
150×100
6×4		165.1×114.3
6.500×4.500		102
4.01
150×125
6×5		165.1×139.7
6.500×5.500		102
4.01
150×80
6×3		168.3×88.9
6.625×3.500		102
4.01
150×100
6×4		168.3×114.3
6.625×4.500		102
4.01
150×80
6×5		168.3×139.7
6.625×5.500		102
4.01
200×80
8×3		219.1×88.9
8.625×3.500		1275
200×100
8×4		219.1×114.3
8.625×4.500		1275
200×125
8×5		219.1×139.7
8.625×5.500		1275
200×150
8×6		219.1×165.1
8.625×6.500		1275
200×150
8×6		219.1×168.3
8.625×6.625		1275

This precision grooved eccentric reducer is engineered for superior performance in fire protection and industrial piping systems. The innovative Victaulic eccentric reducer design features a high-visibility orange coating that provides both corrosion protection and easy identification. UL/FM listed, this reliable grooved eccentric reducer ensures optimal air elimination while preventing liquid accumulation in pipelines. The advanced Victaulic eccentric reducer construction allows for quick, tool-free installation while maintaining excellent flow characteristics. Specifically designed for sprinkler systems and process piping, this durable grooved eccentric reducer delivers exceptional performance in demanding environments. The precision-crafted Victaulic eccentric reducer guarantees perfect alignment and reliable operation, making it the ideal choice for applications requiring maintenance-free service and long-term durability in critical piping systems where efficient diameter transitions are essential.
