3" Grooved Cross Orange Paint Coating Pipe Fitting UL/FM XGQT05

OD:
42.4
48.3
60.3
73
76.1
88.9
108
114.3
133
139.7
141.3
159
165.1
168.3
219.1
273
323.9
Quantity:
Contact Now
add to cart
UL/FM Cross Orange XGQT05
Approvals: UL certified , FM approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

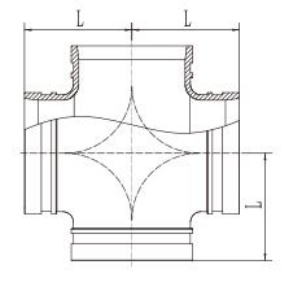

grooved cross

Dimensions & Sizes

Nominal Size
mm/in		Pipe OD.
mm/in		Working
Pressure
psi/Mpa		Dimensions
L mm/in
32
1-1/4		42.4
1.669		300 psi
2.07 Mpa		60
2.36
40
1-1/2		48.3
1.9		60
2.36
50
2		60.3
2.375		70
2.75
65
2-1/2		73.0
2.875		76
3.00
65
2-1/2		76.13 76
3.00
80
3		88.9
3.5		86
3.38
100
4		108
4.25		101
3.98
100
4		114.3
4.5		101
3.98
125
5		133.0
5.25		121
4.76
125
5		139.7
5.5		121
4.76
125
5		141.3
5.563		121
4.76
150
6		159.0
6.25		140
5.51
150
6		165.1
6.5		140
5.51
150
6		168.3
6.625		140
5.51
200
8		219.1
8.625		175
6.88
250
10		273.0
10.75		215
8.46
300
12		323.9
12.750		245
9.64

This precision grooved cross provides efficient four-way flow distribution in fire protection and industrial piping systems. The high-visibility orange cross coating ensures easy identification and offers durable corrosion protection. UL/FM listed, this reliable grooved cross enables smooth multi-directional flow with minimal pressure drop. The distinctive orange cross finish maintains excellent visibility in various installation environments. Designed for quick grooved assembly without specialized tools, this practical grooved cross ensures secure, leak-proof connections at all four ports. The bright orange cross color facilitates straightforward inspection and maintenance. Ideal for complex sprinkler systems and industrial piping networks, this durable grooved cross delivers dependable performance where reliable multi-directional flow distribution and easy identification are essential requirements.
