2"×1" Grooved Concentric Reducer Orange Paint Coating Pipe Fitting UL/FM XGQT07

OD:
42.4
48.3
60.3
73
76.1
88.9
108
114.3
133
139.7
141.3
159
165.1
168.3
219.1
OD2:
33.7
42.4
48.3
60.3
73
76.1
88.9
108
114.3
133
139.7
141.3
159
165.1
168.3
Quantity:
Contact Now
add to cart
UL/FM Grooved Concentric Reducer Orange XGQT07
Approvals: UL certified , FM approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

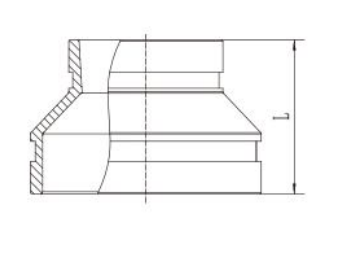

grooved concentric reducer

Dimensions & Sizes

Nominal Size
mm/in		Pipe OD.
mm/in		Working
Pressure
psi/Mpa		Dimensions
L mm/in
32×25
1-1/4×1		42.4×33.7
1.660×1.315		300 psi
2.07 Mpa		64
2.51
40×25
1-1/2 ×1		48.3×33.7
1.900×1.315		64
2.51
40×32
1-1/2 ×1-1/4		48.3×42.4
1.900×1.660		64
2.51
50×25
  2×1		60.3×33.7
2.375×1.315		64
2.51
50×32
2×1-1/4		60.3×42.4
2.375×1.660		64
2.51
50×40
2×1-1/2		60.3×48.3
2.375×1.900		64
2.51
65×25
2-1/2×1		73.0×33.7
2.875×1.315		64
2.51
65×32
2-1/2×1-1/4		73.0×42.4
2.875×1.660		64
2.51
65×40
2-1/2×1-1/2		73.0×48.3
2.875×1.900		64
2.51
65×50
2-1/2×2		73.0×60.3
2.875×2.375		64
2.51
65×32
2-1/2×1-1/4		76.1×42.4
3.000×1.660		64
2.51
65×40
2-1/2 ×1-1/2		76.1×48.3
3.000×1.900		64
2.51
65×50
2-1/2 ×2		76.1×60.3
3.000×2.375		64
2.51
80×32
3×1-1/4		88.9×42.4
3.500×1.660		64
2.51
80×40
3×1-1/2		88.9×48.3
3.500×1.900		64
2.51
80×50
3×2		88.9×60.3
3.500×2.375		64
2.51
80×65
3×2-1/2		88.9×76.1
3.500×3.000		64
2.51
100×65
4×2-1/2		108.0×76.1
4.250×3.000		76
2.99
100×80
4×3		108.0×88.9
4.250×3.500		76
2.99
100×32
4×1-1/4		114.3×42.4
4.500×1.660		76
2.99
100×40
4×1-1/2		114.3×48.3
4.500×1.900		76
2.99
100×50
4×2		114.3×60.3
4.500×2.375		76
2.99
100×65
4×2-1/2		114.3×76.1
4.500×3.000		76
2.99
100×80
4×3		114.3×88.9
4.500×3.500		76
2.99
125×50
5×2		139.7×60.3
5.500×2.375		89
3.50
125×65
5×2-1/2		139.7×76.1
5.500×3.000		89
3.50
125×80
5×3		139.7×88.9
5.500×3.500		89
3.50
125×100
5×4		139.7×114.3
5.500×4.500		89
3.50
125×50
5×2		141.3×60.3
5.563×2.375		89
3.50
125×65
5×2-1/2		141.3×76.1
5.563×3.000		89
3.50
125×80
5×3		141.3×88.9
5.563×3.500		89
3.50
125×100
5×4		141.3×114.3
5.563×4.500		89
3.50
150×50
6×2		159.0×60.3
6.250×2.375		102
4.01
150×65
6×2-1/2		159.0×76.1
6.250×3.000		102
4.01
150×80
6×3		159.0×88.9
6.250×3.500		102
4.01
150×100
6×4		159.0×108.0
6.250×4.250		102
4.01
150×100
6×4		159.0×114.3
6.250×4.500		102
4.01
150×125
6×5		159.0×133.0
6.250×5.250		102
4.01
150×125
6×5		159.0×139.7
6.250×5.500		102
4.01
150×50
6×2		165.1×60.3
6.500×2.375		102
4.01
150×65
6×2-1/2		165.1×76.1
6.500×3.000		300 psi
2.07 Mpa		102
4.01
150×80
6×3		165.1×88.9
6.500×3.500		102
4.01
150×100
6×4		165.1×114.3
6.500×4.500		102
4.01
150×125
6×5		165.1×139.7
6.500×5.500		102
4.01
150×50
6×2		168.3×60.3
6.625×2.375		102
4.01
150×65
6×2-1/2		168.3×76.1
6.625×3.000		102
4.01
150×80
6×3		168.3×88.9
6.625×3.500		102
4.01
150×100
6×4		168.3×114.3
6.625×4.500		102
4.01
150×80
6×5		168.3×139.7
6.625×5.500		102
4.01
200×50
8×2		219.1×60.3
8.625×2.375		1275
200×65
8×2-1/2		219.1×76.1
8.625×3.000		1275
200×80
8×3		219.1×88.9
8.625×3.500		1275
200×100
8×4		219.1×108.0
8.625×4.250		1275
200×100
8×4		219.1×114.3
8.625×4.500		1275
200×125
8×5		219.1×139.7
8.625×5.500		1275
200×150
8×6		219.1×159.0
8.625×6.250		1275
200×150
8×6		219.1×165.1
8.625×6.500		1275
200×150
8×6		219.1×168.3
8.625×6.625		1275

This precision-engineered grooved concentric reducer provides reliable pipe diameter transitions in fire protection and industrial systems. The innovative concentric reducer grooved design features a distinctive orange coating for easy identification and corrosion protection. UL/FM listed, this versatile grooved concentric reducer ensures optimal flow characteristics while maintaining system pressure. The efficient concentric reducer grooved construction allows for quick installation without specialized tools. Designed for sprinkler systems and process piping, this durable grooved concentric reducer delivers exceptional performance in demanding environments. The precision-machined concentric reducer grooved guarantees perfect alignment and leak-proof operation, making it ideal for applications requiring reliable diameter transitions and long service life in critical piping systems.
