6" Adaptor Flange Orange Paint Coating Pipe Fitting UL/FM XGQT08

OD:
60.3
73
88.9
114.3
141
168.3
219.1
273
323.9
Quantity:
Contact Now
add to cart
UL/FM Adaptor Flange Orange XGQT08
Approvals: UL certified , FM approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

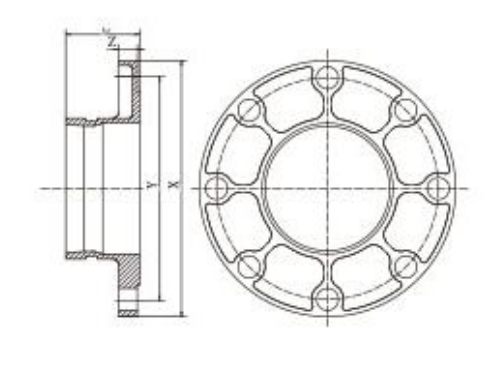

grooved flange

Dimensions & Sizes

Nominal
Size
mm/in		Pipe
OD.
mm/in		Working
Pressure
psi/Mpa		Dimensions mm/inBolt/Size
L
mm/in		X
mm/in		Y
mm/in		Z
mm/in		No.-Size
mm
50
2		60.3
2.375		300 psi
2.07
Mpa		60
2.362		160
6.30		120.7
4.75		15
0.59		4-5/8
65
2-1/2		73
2.875		60
2.362		180
7.08		139.7
5.50		15
0.59		4-5/8
80
3		88.9
3.5		65
2.559		200
7.87		152.5
6.00		15
0.59		8-5/8
100
4		114.3
4.5		70
2.756		228
8.97		190.5
7.50		16
0.63		8-5/8
100
4		141
4.5		70
2.756		250
9.84		216
8.50		17
0.67		8-5/8
150
6		168.3
6.625		70
2.756		282
11.10		241.5
9.50		17
0.67		8-3/4
200
8		219.1
8.625		75
2.952		340
13.39		298.5
11.75		19
0.74		8-3/4
250
10		273
10.75		85
3.346		405
15.94		362
14.25		21
0.82		12-7/8
300
12		323.9
12.750		85
3.346		482
18.97		432
17.00		22
0.86		12-7/8

This versatile grooved adaptor flange provides reliable transition connections between grooved and flanged piping systems. The precision-engineered grooved flange features a durable orange coating for high visibility and corrosion protection. UL/FM listed, this robust grooved adaptor flange ensures secure system integration and excellent pressure retention. The efficient grooved flange design allows for quick, tool-free installation while maintaining perfect alignment. Ideal for fire protection and industrial applications, this reliable grooved adaptor flange facilitates smooth transitions between different connection types. The distinctive orange coating on this grooved flange ensures easy identification during maintenance. This essential grooved adaptor flange delivers long-lasting performance where reliable transitions between grooved and flanged systems are crucial requirements.
