    1" Grooved 90 degree Elbow Orange Paint Coating Pipe Fitting UL/FM

    OD:
    33.7
    42.4
    48.3
    60.3
    73
    76.1
    88.9
    108
    114.3
    133
    139.7
    141.3
    159
    165.1
    168.3
    219.1
    273
    323.9
    Quantity:
    Contact Now
    add to cart
    UL/FM 90° Elbow Orange
    Approvals: UL certified , FM approved
    Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
    Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

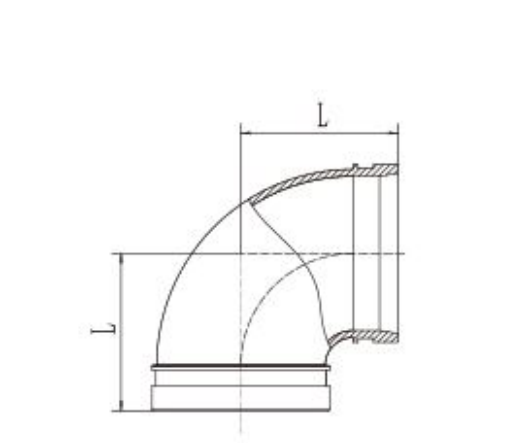

    grooved 90 elbow

    Dimensions & Sizes

    Nominal Size
    mm/in

    Pipe OD.
    mm/in

    Working
    Pressure
    psi/Mpa

    Dimensions
    L mm/in

    25
    1

    33.7
    1.327

    300 psi
    2.07 Mpa

    57
    2.24

    32
    1-1/4

    42.4
    1.669

    60
    2.36

    40
    1-1/2

    48.3
    1.9

    60
    2.36

    50
    2

    60.3
    2.375

    70
    2.75

    65
    2-1/2

    73
    2.875

    76
    3.00

    65
    2-1/2

    76.1
    3

    76
    3.00

    80
    3

    88.9
    3.5

    86
    3.38

    100
    4

    108
    4.25

    101
    3.98

    100
    4

    114.3
    4.5

    101
    3.98

    125
    5

    133
    5.25

    121
    4.76

    125
    5

    139.7
    5.5

    121
    4.76

    125
    5

    141.3
    5.563

    121
    4.76

    150
    6

    159
    6.25

    140
    5.51

    150
    6

    165.1
    6.5

    140
    5.51

    150
    6

    168.3
    6.625

    140
    5.51

    200
    8

    219.1
    8.625

    175
    6.88

    250
    10

    273
    10.75

    188.5
    7.42

    300
    12

    323.9
    12.750

    222.5
    8.76

    This precision grooved 90 elbow delivers reliable right-angle directional changes for fire protection and industrial piping systems. The corrosion-resistant grooved elbow features a durable orange coating that ensures excellent visibility and long-term protection. UL/FM certified, this robust grooved 90 elbow maintains smooth flow transition with minimal pressure loss. The innovative grooved elbow design enables quick, tool-free installation while guaranteeing perfect alignment. Ideal for sprinkler systems and industrial applications, this durable grooved 90 elbow handles sharp directional changes in complex piping layouts. The bright orange coating on this grooved elbow provides easy identification during maintenance. This essential fitting delivers exceptional performance where secure 90-degree directional changes and reliable flow control are crucial requirements in modern piping systems.
