12" Grooved 45 degree Elbow Orange Paint Coating Pipe Fitting UL/FM

OD:
33.7
42.4
48.3
60.3
73
76.1
88.9
108
114.3
133
139.7
141.3
159
165.1
168.3
219.1
273
323.9
Quantity:
Contact Now
add to cart
UL/FM 45° Elbow Orange
Approvals: UL certified , FM approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

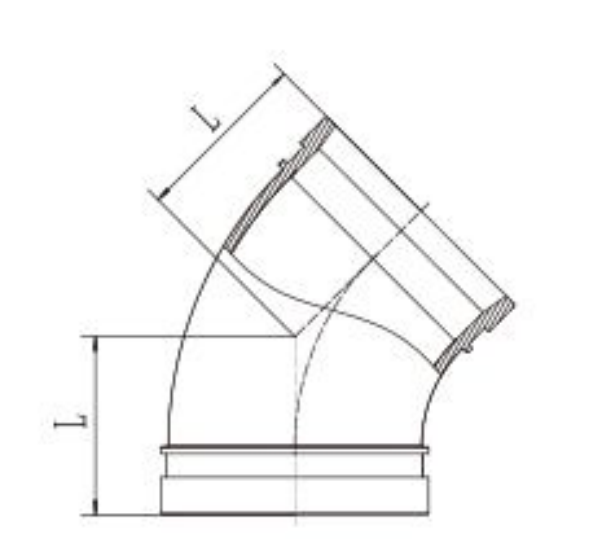

grooved 45 elbow

Dimensions & Sizes

Nominal Size
mm/in		Pipe OD.
mm/in		Working
Pressure
psi/Mpa		Dimensions
L mm/in
25
1		33.7
1.327		300 psi
2.07 Mpa		45
1.77
32
1-1/4		42.4
1.669		45
1.77
40
1-1/2		48.3
1.9		45
1.77
50
2		60.3
2.375		51
2.00
65
2-1/2		73
2.875		57
2.24
65
2-1/2
76.1
3
57
2.24
80
3		88.9
3.5		64
2.51
100
4		108
4.25		76
3.00
100
4		114.3
4.5		76
3.00
125
5		133
5.25		82.5
3.24
125
5		139.7
5.5		82.5
3.24
125
5		141.3
5.563		82.5
3.24
150
6		159
6.25		89
3.50
150
6		165.1
6.5		89
3.50
150
6		168.3
6.625		89
3.50
200
8		219.1
8.625		108
4.25
250
10		273
10.75		120.5
4.74
300
12		323.9
12.750		133
5.23


This precision grooved 45 elbow provides perfect directional changes in fire protection and industrial piping systems. The corrosion-resistant grooved elbow features a durable orange coating for excellent visibility and protection. UL/FM certified, this reliable grooved 45 elbow ensures smooth flow transition with minimal pressure loss. The innovative grooved elbow design enables quick, tool-free installation while maintaining perfect alignment. Ideal for sprinkler systems and industrial applications, this versatile grooved 45 elbow accommodates medium-angle adjustments in complex piping layouts. The bright orange coating on this grooved elbow ensures easy identification during maintenance. This essential fitting delivers outstanding performance where precise 45-degree directional changes and efficient flow control are critical requirements in modern piping systems.
