1.4301 DN10 Raised Face (RF) Hubbed Slip-On Flange (SOH) Stainless Steel PN6 DIN 2641 DIN 2642

Product Overview

1.4301 DN10 Raised Face (RF) Hubbed Slip-On Flange (SOH) Stainless Steel PN6 DIN 2641 DIN 2642

The 1.4301 DN10 Raised Face (RF) Hubbed Slip-On Flange (SOH) Stainless Steel PN6 DIN 2641 DIN 2642 is a high-quality industrial piping component manufactured to meet stringent international standards. Designed for critical applications across various industries, this flange offers exceptional performance, reliability, and longevity.

Our stainless steel flanges are precision-engineered using advanced manufacturing techniques and premium-grade materials. Each flange undergoes rigorous quality control and testing to ensure compliance with dimensional tolerances and pressure ratings specified by international standards.

This precision hubbed slip on flange provides reliable performance for small-bore piping connections. Manufactured from 1.4301 stainless steel according to DIN 2641 and DIN 2642 standards, this durable flange slip on class 150 equivalent component features excellent corrosion resistance. The raised face design of this hubbed slip on flange ensures optimal gasket compression and leak-proof sealing. Rated for PN6 pressure applications, this compact flange slip on class 150 type product guarantees easy installation and maintenance. Ideal for instrumentation, chemical processing, and food industry applications, this practical hubbed slip on flange offers cost-effective solutions where space constraints and reliable connections are essential requirements in piping systems.

Key Features

• Premium Quality Materials: Manufactured from certified stainless steel grades ensuring excellent corrosion resistance and durability
• Precision Engineering: CNC machined to exact specifications with tight tolerances meeting international standards
• Comprehensive Size Range: Available in multiple sizes and pressure ratings to suit various piping applications
• Industry Compliance: Fully compliant with ASME, EN, DIN, JIS, and other international standards
• Versatile Applications: Suitable for oil & gas, chemical processing, power generation, water treatment, and other industrial applications
• Quality Assurance: 100% inspection and testing with comprehensive documentation and traceability
• Customization Available: Custom manufacturing services available for special requirements and non-standard dimensions
• Global Supply: Worldwide shipping with experienced logistics support ensuring safe and timely delivery

Dimensions & Sizes

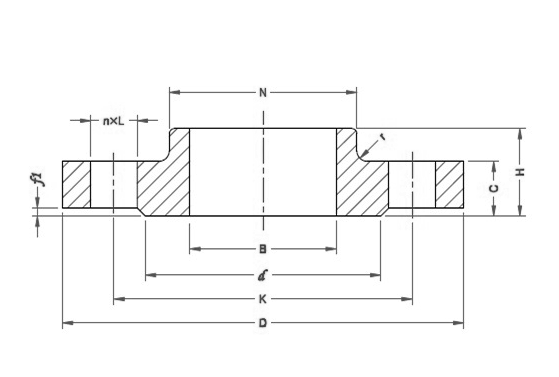

DN	Pipe OD, A		Outside Diamete, D	Diameter of Bolt Circle, K	Dia of Bolt Hole, L	No. of bolt	Diameter of Raised Face, d	Height of Raised Face, f1	Flange thickness, C	Length of Flange, H	Neck Diameter , N		Radius of Corners, r	Bore diameter,B
	Series Ⅰ	Series Ⅱ									Series Ⅰ	Series Ⅱ		Series Ⅰ	Series Ⅱ
10	17.2	14	75	50	11	4	35	2	12	20	25		4	18	15
15	21.3	18	80	55	11	4	40	2	12	20	30		4	22	19
20	26.9	25	90	65	11	4	50	2	14	24	40		4	27.5	26
25	33.7	32	100	75	11	4	60	2	14	24	50		4	34.5	33
32	42.4	38	120	90	14	4	70	2	14	26	60		6	43.5	39
40	48.3	45	130	100	14	4	80	3	14	26	70		6	49.5	46
50	60.3	57	140	110	14	4	90	3	14	28	80		6	61.5	59
65	76.1	79	160	130	14	4	110	3	14	32	100		6	77.5	78
80	88.9	89	190	150	18	4	128	3	16	34	110		8	90.5	91
100	114.3	108	210	170	18	4	148	3	16	40	130		8	116	110
125	139.7	133	240	200	18	8	178	3	18	44	160		8	141.5	135
150	168.3	159	265	225	18	8	202	3	18	44	185		10	170.5	161
200	219.1	219	320	280	18	8	258	3	20	44	240		10	221.5	222
250	273	273	375	335	18	12	312	3	22	44	295		12	276.5	276
300	323.9	325	440	395	22	12	365	4	22	44	355
PN6



This flange is available in a comprehensive range of sizes and pressure ratings to accommodate diverse piping system requirements. Our manufacturing capabilities allow us to produce both standard and custom dimensions.

Available Sizes: Wide range from small bore to large diameter

Pressure Ratings: Multiple pressure classes available (Class 150, 300, 600, 900, 1500, 2500, and PN ratings)

Connection Types: Suitable for welding, threading, or slip-on connections depending on flange type

For detailed dimension tables and technical drawings, please contact our technical support team. We can provide comprehensive dimensional specifications according to your required standard (ASME, EN, DIN, JIS, etc.).
