F304L 2" Raised Face (RF) Blind Flange (BL) Stainless Steel 150-2500# ASME B16.5

Pressure Ratings:
150 lbs
300 lbs
400lbs
600 lbs
900 lbs
1500 lbs
2500 lbs
NPS:
1/2 "
3/4"
1"
1-1/4"
1-1/2"
2"
2-1/2 "
3"
3-1/2"
4"
5"
6"
8"
10"
12"
14"
16"
18"
20"
24"
Material：:
304
304L
316
316L
Custom
Quantity:
Contact Now
add to cart
ASME B16.5 Blind Flange (BL)
Standard: ASME B16.5
Material Standard: ASME A182
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

Product Overview

F304L 2"Raised Face (RF) Blind Flange (BL) Stainless Steel 150-2500# ASME B16.5

The F304L 2"Raised Face (RF) Blind Flange (BL) Stainless Steel 150-2500# ASME B16.5 is a high-quality industrial piping component manufactured to meet stringent international standards. Designed for critical applications across various industries, this flange offers exceptional performance, reliability, and longevity.

Our stainless steel flanges are precision-engineered using advanced manufacturing techniques and premium-grade materials. Each flange undergoes rigorous quality control and testing to ensure compliance with dimensional tolerances and pressure ratings specified by international standards.

Key Features

  • Premium Quality Materials: Manufactured from certified stainless steel grades ensuring excellent corrosion resistance and durability
  • Precision Engineering: CNC machined to exact specifications with tight tolerances meeting international standards
  • Comprehensive Size Range: Available in multiple sizes and pressure ratings to suit various piping applications
  • Industry Compliance: Fully compliant with ASME, EN, DIN, JIS, and other international standards
  • Versatile Applications: Suitable for oil & gas, chemical processing, power generation, water treatment, and other industrial applications
  • Quality Assurance: 100% inspection and testing with comprehensive documentation and traceability
  • Customization Available: Custom manufacturing services available for special requirements and non-standard dimensions
  • Global Supply: Worldwide shipping with experienced logistics support ensuring safe and timely delivery

Dimensions & Sizes

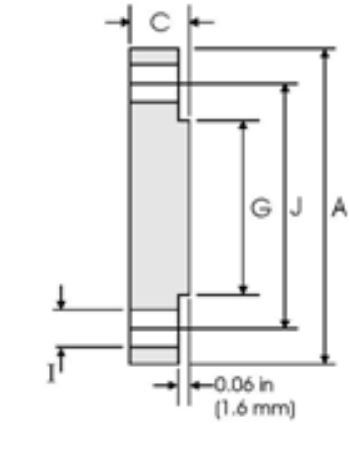

stainless blind flange

PipeFlange DataRaised FaceDrilling DataWeight
NominalPipe SizeOutside DiameterOverall DiameterFlangeThickness minFace DiameterNumber of HolesBolt Hole DiameterDiameter of Circle of Holeskg/piece
inininininin
mmmmmmmmmmmm
1/20.840 21.303.750 95.200.560 14.201.380 35.1040.620 15.702.620 66.550.76
3/41.050 26.704.620 117.30.620 15.701.690 42.9040.750 19.103.250 82.601.28
1 1.315 33.404.880 123.90.690 17.502.000 50.8040.750 19.103.500 88.901.6
1-1/41.660 42.205.250 133.30.810 20.602.500 63.5040.750 19.103.880 98.602.23
1-1/21.900 48.306.120 155.40.880 22.302.880 73.1540.880 22.404.500 114.33.25
2 2.375 60.306.500 165.11.000 25.403.620 91.9080.750 19.105.000 127.04.15
2-1/22.875 73.007.500 190.51.120 28.404.120 104.680.880 22.405.880 149.46.13
33.500 88.908.250 209.51.250 31.705.000 127.080.880 22.406.620 168.18.44
3-1/24.000 101.69.000 228.61.380 35.005.500 139.781.000 25.407.250 184.211
44.500 114.310.00 254.01.380 35.106.190 157.281.000 25.407.880 200.213.7
55.563 141.311.00 279.41.500 38.107.310 185.781.000 25.409.250 235.018.5
66.625 168.312.50 317.51.620 41.108.500 215.9121.000 25.4010.62 269.725.5
88.625 219.115.00 381.01.880 47.8010.62 269.7121.120 28.4013.00 330.242.6
1010.75 273.017.50 444.52.120 53.8012.75 323.9161.250 31.7515.25 387.464.5
1212.75 323.820.50 520.72.250 57.1515.00 381.0161.380 35.1017.75 450.994.3
1414.00 355.623.00 584.22.380 60.4516.25 412.8201.380 35.1020.25 514.4124
1616.00 406.425.50 647.72.500 63.5018.50 469.9201.500 38.1022.50 571.5162
1818.00 457.228.00 711.22.620 66.5521.00 533.4241.500 38.1024.75 628.7205
2020.00 508.030.50 774.72.750 69.8523.00 584.2241.620 41.1027.00 685.8254
2424.00 609.636.00 914.43.000 76.2027.25 692.2241.880 47.8032.00 812.8386
Class400

This flange is available in a comprehensive range of sizes and pressure ratings to accommodate diverse piping system requirements. Our manufacturing capabilities allow us to produce both standard and custom dimensions.

Available Sizes: Wide range from small bore to large diameter

Pressure Ratings: Multiple pressure classes available (Class 150, 300, 600, 900, 1500, 2500, and PN ratings)

Connection Types: Suitable for welding, threading, or slip-on connections depending on flange type

For detailed dimension tables and technical drawings, please contact our technical support team. We can provide comprehensive dimensional specifications according to your required standard (ASME, EN, DIN, JIS, etc.).
