2"×1" Threaded Reducing Tee Orange Paint Coating Pipe Fitting UL/FM XGQT04S

OD:
33.7
42.4
48.3
60.3
73
76.1
88.9
108
114.3
133
139.7
141.3
159
165.1
168.3
219.1
273
323.9
OD2:
33.7
42.4
48.3
60.3
73
76.1
88.9
108
114.3
133
139.7
141.3
159
165.1
168.3
219.1
273
323.9
Quantity:
Contact Now
add to cart
UL/FM Threaded Reducing Tee Orange XGQT04S
Approvals: UL certified , FM approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

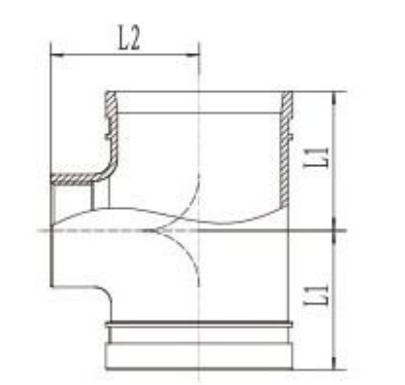

grooved tee

Dimensions & Sizes

Nominal Size
mm/in		Pipe OD.mm/inWorking Pressure
psi/Mpa		Dimensions
L1 mm/in		Dimensions
L2 mm/in
 40×25
 1-1/2 ×1		48.3×33.7
1.900×1.315		300 psi
2.07 Mpa		60
2.36		60
2.36
  40×32
1-1/2×1-1/4		48.3×42.4
1.900×1.660		60
2.36		60
2.36
  50×25
   2×1		60.3×33.7
2.375×1.315		70
2.75		70
2.75
50×32
2×1-1/4		60.3×42.4
2.375×1.660		70
2.75		70
2.75
50×40
2×1-1/2		60.3×48.3
2.375×1.900		70
2.75		70
2.75
 65×25
 2-1/2 ×1		73.0×33.7
2.875×1.315		76
3.00		76
3.00
65×32
2-1/2×1-1/4		73.0×42.4
2.875×1.660		76
3.00		76
3.00
   65×40
2-1/2×1-1/2		73.0×48.3
2.875×1.900		76
3.00		76
3.00
65×50
2-1/2 ×2		73.0×60.3
2.875×2.375		76
3.00		76
3.00
 65×25
 2-1/2 ×1		76.1×33.7
3.000×1.315		76
3.00		76
3.00
65×32
2-1/2×1-1/4		76.1×42.4
3.000×1.660		76
3.00		76
3.00
   65×40
2-1/2×1-1/2		76.1×48.3
3.000×1.900		76
3.00		76
3.00
65×50
2-1/2 ×2		76.1×60.3
3.000×2.375		76
3.00		76
3.00
  80×25
  3×1		88.9×33.7
3.500×1.315		86
3.38		86
3.38
 80×32
 3×1-1/4		88.9×42.4
3.500×1.660		86
3.38		86
3.38
80×40
3×1-1/2		88.9×48.3
3.500×1.900		86
3.38		86
3.38
  80×50
  3×2		88.9×60.3
3.500×2.375		86
3.38		86
3.38
80×65
3×2-1/2		88.9×76.1
3.500×3.000		86
3.38		86
3.38
100×65
4×2-1/2		108.0×76.1
4.250×3.000		101
3.98		101
3.98
100×80
  4×3		108.0×88.9
4.250×3.500		101
3.98		101
3.98
100×25
  4×1		114.3×33.7
4.500×1.315		101
3.98		101
3.98
100×32
  4×1-1/4		114.3×42.4
4.500×1.660		101
3.98		101
3.98
 100×40
 4×1-1/2		114.3×48.3
4.500×1.900		101
3.98		101
3.98
100×50
  4×2		114.3×60.3
4.500×2.375		101
3.98		101
3.98
 100×65
 4×2-1/2		114.3×76.1
4.500×3.000		101
3.98		101
3.98
100×80
  4×3		114.3×88.9
4.500×3.500		101
3.98		101
3.98
125×25
  5×1		139.7×33.7
5.500×1.315		121
4.76		121
4.76
125×32
5×1-1/4		139.7×42.4
5.500×1.660		121
4.76		121
4.76
125×40
5×1-1/2		139.7×48.3
5.500×1.900		121
4.76		121
4.76
125×50
5×2		139.7×60.3
5.500×2.375		121
4.76		121
4.76
125×65
5×2-1/2		139.7×76.1
5.500×3.000		121
4.76		121
4.76
125×80
5×3		139.7×88.9
5.500×3.500		121
4.76		121
4.76
125×25
5×1		141.3×33.7
5.563×1.315		121
4.76		121
4.76
125×32
5×1-1/4		141.3×42.4
5.563×1.660		121
4.76		121
4.76
125×40
5×1-1/2		141.3×48.3
5.563×1.900		121
4.76		121
4.76
125×50
5×2		141.3×60.3
5.563×2.375		121
4.76		121
4.76
125×65
5×2-1/2		141.3×73.0
5.563×2.875		121
4.76		121
4.76
125×65
5×2-1/2		141.3×76.1
5.563×3.000		121
4.76		121
4.76
150×65
6×2-1/2		159.0×76.1
6.250×3.000		140
5.50		140
5.50
150×80
6×3		159.0×88.9
6.250×3.500		140
5.50		140
5.50
150×25
6×1		165.1×33.7
6.500×1.315		140
5.50		140
5.50
150×32
6×1-1/4		165.1×42.4
6.500×1.660		140
5.50		140
5.50
150×40
6×1-1/2		165.1×48.3
6.500×1.900		140
5.50		140
5.50
150×50
6×2		165.1×60.3
6.500×2.375		140
5.50		140
5.50
150×65
6×2-1/2		165.1×76.1
6.500×3.000		140
5.50		140
5.50
150×80
6×3		165.1×88.9
6.500×3.500		140
5.50		140
5.50
150×100
6×4		165.1×114.3
6.500×4.500		140
5.50		140
5.50
150×25
6×1		168.3×33.7
6.625×1.315		140
5.50		140
5.50
150×32
6×1-1/4		168.3×42.4
6.625×1.660		140
5.50		140
5.50
150×40
6×1-1/2		168.3×48.3
6.625×1.900		140
5.50		140
5.50
150×50
6×2		168.3×60.3
6.625×2.375		140
5.50		140
5.50
200×50
8×2		219.1×60.3
8.625×2.375		175
6.88		175
6.88
200×65
8×2-1/2		219.1×76.1
8.625×3.000		175
6.88		175
6.88
200×80
8×3		219.1×88.9
8.625×3.500		175
6.88		175
6.88
