8" Grooved 22.5 degree Elbow Orange Paint Coating Pipe Fitting UL/FM

OD:
42.4
48.3
60.3
73
76.1
88.9
108
114.3
133
139.7
159
165.1
168.3
219.1
Quantity:
Contact Now
add to cart
UL/FM 22.5° Elbow Orange
Approvals: UL certified , FM approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

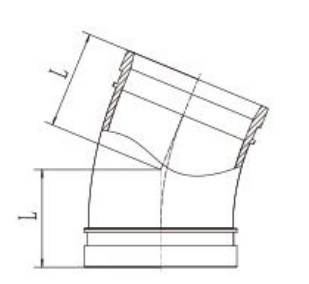

22.5 degree elbow

Dimensions & Sizes

Nominal Size
mm/in		Pipe OD.
mm/in		Working
Pressure
psi/Mpa		Dimensions
L mm/in
32
1-1/4		42.4
1.669		300 psi
2.07 Mpa		45
1.77
40
1-1/2		48.3
1.9		45
1.77
50
2		60.3
2.375		48
1.88
65
2-1/2		73
2.875		51
2.00
65
2-1/2
76.1
3
51
2.00
80
3		88.9
3.5		57
2.24
100
4		108
4.25		73
2.87
100
4		114.3
4.5		73
2.87
125
5		133
5.25		73
2.87
125
5		139.7
5.5		73
2.87
150
6		159
6.25		89
3.50
150
6		165.1
6.5		89
3.50
150
6		168.3
6.625		89
3.50
200
8		219.1
8.625		98
3.85

This precision 22.5 degree elbow delivers accurate directional control for fire protection and industrial piping systems. The innovative grooved elbow design features a durable orange coating that provides both high visibility and superior corrosion protection. UL/FM listed, this reliable 22.5 degree elbow ensures smooth flow transition with minimal pressure loss. The practical grooved elbow configuration enables quick installation without specialized tools or system modifications. Engineered for sprinkler systems and industrial applications, this versatile 22.5 degree elbow accommodates precise angle requirements in complex piping layouts. The bright orange coating on this grooved elbow ensures easy identification during maintenance. This essential fitting delivers reliable performance where exact angular adjustments and efficient flow direction are critical requirements.
