6" Grooved 11.25 degree Elbow Orange Paint Coating Pipe Fitting UL/FM

OD:
60.3
76.1
88.9
108
114.3
133
139.7
159
165.1
168.3
219.1
Quantity:
Contact Now
add to cart
UL/FM 11.25° Elbow Orange
Approvals: UL certified , FM approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

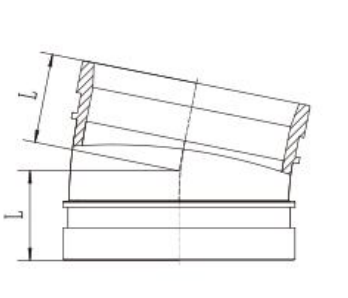

11.25 degree elbow

Dimensions & Sizes

Nominal Size
mm/in		Pipe OD.
mm/in		Working
Pressure
psi/Mpa		Dimensions
L mm/in
50
2		60.3
2.375		300 psi
2.07 Mpa		35
1.37
65
2-1/2		76.1
3		38
1.49
80
3		88.9
3.5		38
1.49
100
4		108
4.25		44
1.73
100
4		114.3
4.5		44
1.73
125
5		133
5.25		51
2.00
125
5		139.7
5.5		51
2.00
150
6		159
6.25		51
2.00
150
6		165.1
6.5		51
2.00
150
6		168.3
6.625		51
2.00
200
8		219.1
8.625		51
2.00

This precision 11.25 degree elbow provides accurate directional adjustments in fire protection and industrial piping systems. The specialized elbow groove design features a durable orange coating for high visibility and corrosion protection. UL/FM listed, this reliable 11.25 degree elbow ensures smooth flow transition with minimal pressure loss. The innovative elbow groove configuration allows for quick installation and perfect alignment. Designed for sprinkler systems and process piping, this versatile 11.25 degree elbow accommodates precise angle requirements in complex layouts. The bright orange coating on this elbow groove fitting ensures easy identification during inspections. This essential component delivers reliable performance where exact angular adjustments and efficient flow direction are critical requirements in modern piping systems.
