The Hidden Corrosion Risk in "Stainless" Steel Pipes - Are Your Systems Safe?

Despite its name which suggests otherwise, “stainless steel” remains susceptible to significant degradation under specific environmental and operational conditions. The most dangerous misconception is treating it as infallible. For piping systems in particular, three insidious corrosion mechanisms are frequently underestimated during both design and maintenance phases.

Viewing stainless steel as a uniformly corrosion-resistant material is one of the costliest and most hazardous myths in modern industry. Its resistance depends entirely on a nanoscale-thin, chromium-rich passive film on the surface. This film is dynamic, vulnerable, and requires precise conditions to remain stable. Within piping systems, three particularly stealthy, progressive, and potentially catastrophic forms of corrosion are often overlooked, despite their prevalence and destructive potential.

Part 1: An In-Depth Look at Three “Silent” Failure Mechanisms

1. Pitting and Crevice Corrosion: Localized “Time Bombs”

These are the primary adversaries of austenitic stainless steels (like grades 304 and 316) in chloride-containing environments. The failure occurs when the balance between localized breakdown and self-repair of the passive film is disrupted.

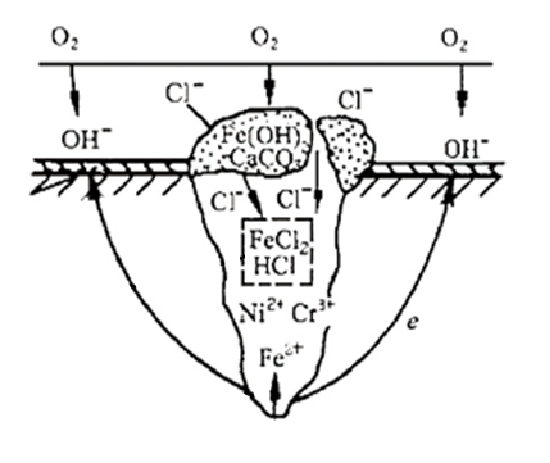

Scientific Mechanism: Chloride ions (Cl⁻) possess a strong ability to penetrate and destroy the passive layer. At microscopic defects on the pipe’s inner wall (e.g., inclusions, scratches), or within occluded crevices—such as under gaskets, inside threaded fittings, or beneath deposits or biofilm—oxygen diffusion becomes severely restricted. This creates an oxygen-depleted, chloride-enriched microenvironment where the passive film cannot regenerate. Corrosion initiates and creates a self-accelerating acidic pit, leading to deep cavities or widespread attack within the crevice at a rate far exceeding that of the surrounding area.

Real-World Case & Data: Beyond the initial case study, a 316L preheater pipe in a Middle Eastern desalination plant failed after only 18 months. Metallurgical analysis revealed severe pitting corrosion under residual weld slag in the heat-affected zone, where post-weld pickling and passivation were inadequate. The minimum pit depth was 2.1 mm against a nominal wall thickness of 3.0 mm. Laboratory tests per ASTM G48 show that the Critical Pitting Temperature (CPT) for 316L can vary by over 10°C between different melt batches or even across the same plate, proving that “qualified” material can perform inconsistently in practice.

2. Stress Corrosion Cracking (SCC): The Unannounced “Brittle Fracture”

SCC is the most threatening failure mode, as it can cause sudden, catastrophic rupture with little to no prior macroscopic warning.

Scientific Mechanism: SCC requires the simultaneous presence of three factors, known as the “SCC Triangle”: a susceptible alloy (austenitic stainless steels are highly prone), a specific corrosive environment (e.g., chlorides, hot caustics), and tensile stress. In piping, stress arises from installation misalignment, welding residual stress, internal pressure, and restrained thermal expansion. The combined long-term action of corrosion and stress leads to crack initiation and propagation, often intergranularly, in a largely undetectable process.

Real-World Case & Data: A 304H stainless steam line in a European paper mill’s recovery boiler ruptured three months post-overhaul. The investigation found that welds lacked proper stress-relief heat treatment, and concentrated caustic solution remained in a low point after inadequate cleaning. This combination triggered caustic SCC. ASME failure case studies indicate that over 60% of SCC failures in stainless piping correlate with high-stress zones from cold working (bending, flaring) or welding.

3. Intergranular Corrosion and Knife-Line Attack: The Welded Joint’s “Achilles’ Heel”

This form of corrosion targets the inherent weak point of stainless steel: the welded joint and its heat-affected zone.

Scientific Mechanism: For standard (non-“L”) grades like 304 or 316, exposure to the sensitization temperature range (450-850°C) during slow cooling or welding causes carbon to migrate to grain boundaries. There, it forms chromium carbides (e.g., Cr₂₃C₆), depleting adjacent areas of chromium. This chromium-depleted zone loses its passivation ability. In corrosive service, the grain boundaries are selectively dissolved, causing grains to fall out and material strength to vanish. Knife-line attack is an extreme form occurring in a razor-thin zone immediately adjacent to the weld fusion line.

Real-World Case & Data: Tube-to-tubesheet welds in a 304 stainless heat exchanger at an Asian chemical plant leaked extensively after three years. Analysis confirmed sensitization of the heat-affected zone due to uncontrolled welding heat input, leading to intergranular corrosion in chloride-containing cooling water. Per ASTM A262 Practice E, sensitized 304 specimens fail in bend tests due to grain boundary corrosion, while properly solution-annealed samples do not, underscoring the critical need for controlled welding and heat treatment procedures.

Part 2: Why Are These Systemic Risks Consistently Overlooked?

The persistence of these corrosion-related failures stems not from a lack of technical knowledge, but from a convergence of cognitive biases, economic pressures, and procedural gaps that create layers of vulnerability throughout a project's lifecycle.

The Cost-Driven Selection Compromise: In the initial phases of a project, capital expenditure (CAPEX) pressures are intense. Value engineering exercises often target material costs, leading to decisions to "downgrade" from a more robust alloy like duplex stainless steel (UNS S32205) to standard 316L, or from 316L to 304. This decision is frequently underpinned by an optimistic fallacy: "Uprating by one grade provides a sufficient safety margin." However, this neglects the precise, often aggressive, chemistry of the process stream. "The 'good-enough' mentality is the single greatest contributor to premature material failure in our industry," warns Dr. Chan. "Corrosion does not compromise."

The "Devil in the Details" in Design and Execution: Failures are often baked in during design and installation through subtle oversights.

Design Flaws: The presence of dead legs, low-flow zones, or areas prone to solids deposition creates pockets where corrosive agents can concentrate, accelerating localized attack.

Improper Installation Practices: Direct contact between stainless steel piping and carbon steel supports without adequate insulation creates a galvanic couple, sacrificially corroding the stainless steel. Using tools to force alignment during fit-up introduces harmful residual stresses. Perhaps most critically, the standard practice of stopping at visual weld inspection—grinding a weld smooth—while skipping mandatory pickling and passivation leaves behind a heat-tinted zone with severely degraded corrosion resistance, acting as a pre-installed failure site.

The Misleading "Maintenance-Free" Label: The "stainless" designation often leads to the erroneous classification of such piping systems as low-priority in asset integrity programs. Corrosion Under Insulation (CUI) inspection schedules are neglected. Ultrasonic Thickness (UT) monitoring programs fail to include these "non-critical" lines. This creates a monitoring blind spot where degradation can progress undetected until it manifests as a leak or rupture.

Part 3: Building a Proactive Defense System: From Philosophy to Action

Securing the long-term integrity of stainless steel piping requires a holistic, life-cycle management strategy that transforms thinking from reactive to preventive.

1. Implement Risk-Based Accurate Material Selection (RBAMS): Move beyond generic material charts. Conduct a detailed Process Fluid Analysis to identify all aggressive species (Cl-, F-, H2S, etc.), pH, and operational temperature cycles. For critical services, engage a corrosion specialist to evaluate advanced alloys like super austenitic (904L, 6Mo alloys) or super duplex steels. Crucially, demand full Material Test Certificates (MTCs) traceable to the heat lot, and verify key performance indicators like the Pitting Resistance Equivalent Number (PREN).

2. Enforce Uncompromising Fabrication and Quality Assurance Protocols: Specifications must be explicit and non-negotiable.

Welding: Require qualified Welding Procedure Specifications (WPS) and certified welders. Specify the use of low-carbon filler metals for "L" grades.

Post-Weld Treatment: Mandate full pickling and passivation of all welds and heat-affected zones to restore the passive film. For thick sections or highly constrained welds, specify Post-Weld Heat Treatment (PWHT) to relieve stresses.

Verification: Implement staged Non-Destructive Examination (NDE). Follow visual inspection (VT) with Liquid Penetrant Testing (PT) for surface flaws and, for critical lines, Radiographic Testing (RT) to verify internal weld soundness.

3. Adopt a Lifecycle Monitoring and Predictive Maintenance Regime: Integrity must be actively managed.

Risk-Based Inspection (RBI): Develop an inspection plan per API 570 or similar standards, focusing UT scans on high-risk areas: welds, dead legs, supports, and insulation termination points.

Process and Environmental Control: Implement online monitoring of key parameters like chloride concentration and pH, with automated alerts for excursions outside the material's safe operating window.

Advanced Diagnostics: Employ corrosion coupons for long-term trend analysis and electrochemical monitoring techniques (LPR, ECN) for real-time corrosion rate data. Use advanced UT methods like Phased Array (PAUT) for detailed flaw characterization.

Insulation Integrity Management: Establish a rigorous program for inspecting, maintaining, and replacing insulation to be the primary defense against CUI.

4. Foster a Culture of Corrosion Awareness and Competency: The final, and perhaps most critical, layer is human.

Targeted Training: Educate not just engineers, but also project managers, procurement staff, and maintenance technicians on the fundamentals of corrosion mechanisms and the fallacy of "stainless" perfection.

Knowledge Management: Create a live failure case library from both internal incidents and industry reports, ensuring lessons are learned and institutionalized.

Independent Assurance: Periodically engage NACE-certified corrosion specialists for third-party system audits. An external lens can identify ingrained blind spots and validate the effectiveness of the integrity management program.

Safety and reliability in stainless steel piping systems are not inherent properties of the metal; they are the engineered outcomes of informed material science, precision manufacturing, disciplined operational control, and vigilant stewardship. Each investment in proactive corrosion prevention—from a more suitable alloy at the design stage to a routine UT scan—is a strategic investment in asset longevity, operational continuity, and ultimate profitability. In today's competitive industrial landscape, a robust piping integrity strategy is no longer just good engineering; it is a fundamental component of resilient and sustainable business operations.
