A Guide to Core Steel Pipe Product Classification and Value Positioning

Steel pipes, serving as the "blood vessels" of industrial society, are critical components whose selection directly impacts the safety, economy, and reliability of engineering projects. This guide provides a systematic overview of mainstream steel pipe product categories, helping you establish a clear decision-making framework.

I. Seamless Steel Pipes: The Core for High-Pressure and High-Reliability Applications

Core Value Proposition: A continuous, weld-free structure eliminates the longitudinal weld seam—a potential weak point—offering optimal homogeneity, pressure-bearing capacity, and fatigue resistance.

1. Classification by Material & Standard:

Carbon Steel Seamless Pipe:

Key Standards: ASTM A106 (High-Temperature Service), ASTM A53 (General Use).

Critical Characteristics: High cost-effectiveness, good strength, and machinability. Suitable for conveying steam, water, oil, and gas.

Applications: Non-heated piping in power plant boilers, oil & gas gathering and transmission, general process piping.

Alloy Steel Seamless Pipe:

Key Standards: ASTM A335 "P-Grades" (e.g., P11, P22, P91).

Critical Characteristics: Addition of chromium, molybdenum, etc., significantly enhances high-temperature strength, creep resistance, and oxidation resistance.

Applications: Superheaters and reheaters in power plant boilers (high temp/pressure), cracking furnaces in petroleum refineries.

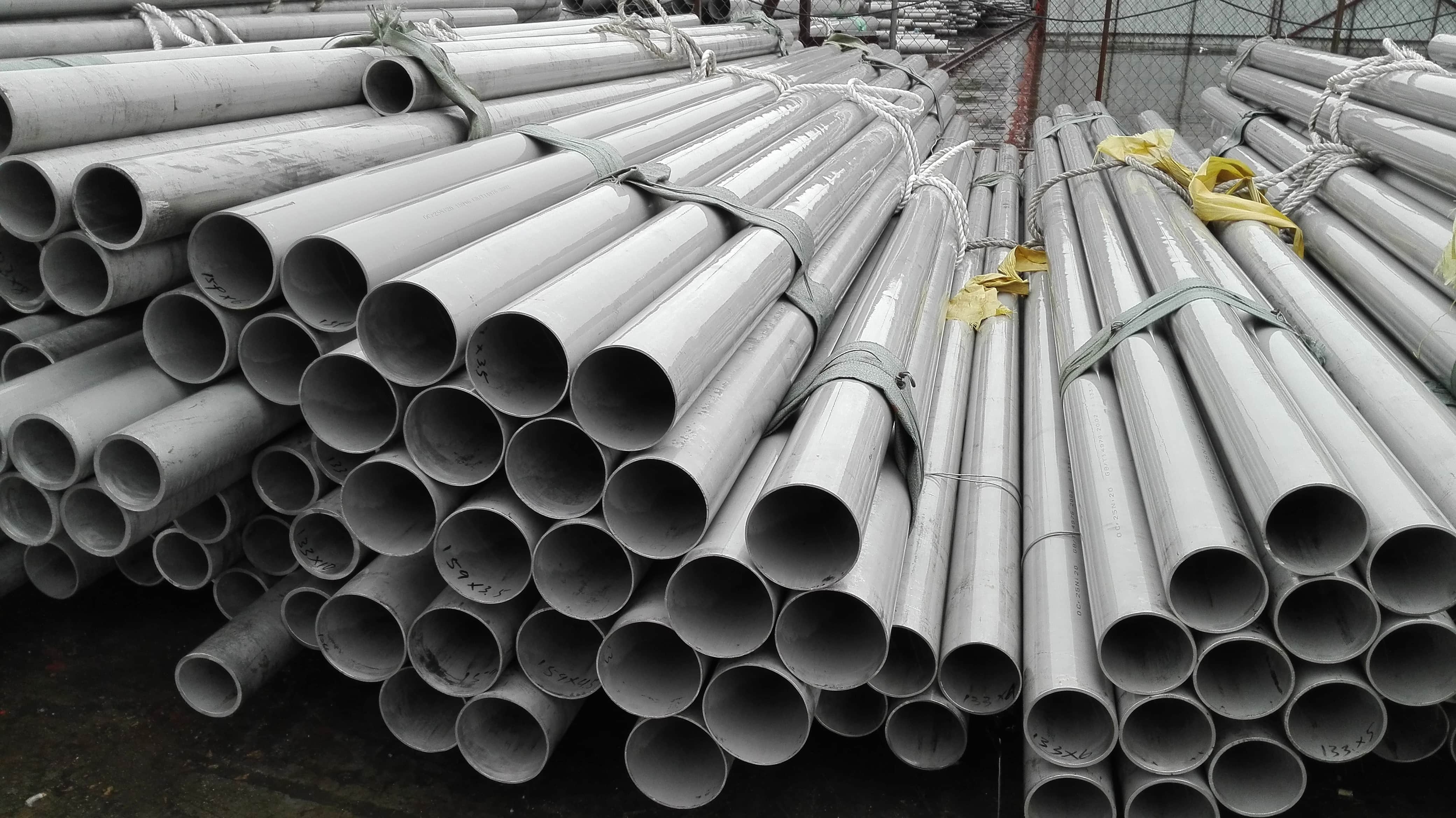

Stainless Steel Seamless Pipe:

Key Standards: ASTM A312 (General Process Piping), ASTM A213 (Boiler & Heat Exchanger Tubes).

Critical Characteristics: Exceptional corrosion resistance, covering grades from basic 304 to super-austenitic 904L.

Applications: Corrosive or high-purity environments in chemical, pharmaceutical, food, and marine engineering.

High-End Segments: Super Duplex Steel (e.g., S32750), Nickel Alloy Pipes (e.g., Inconel 625) for extreme corrosion and temperature conditions.

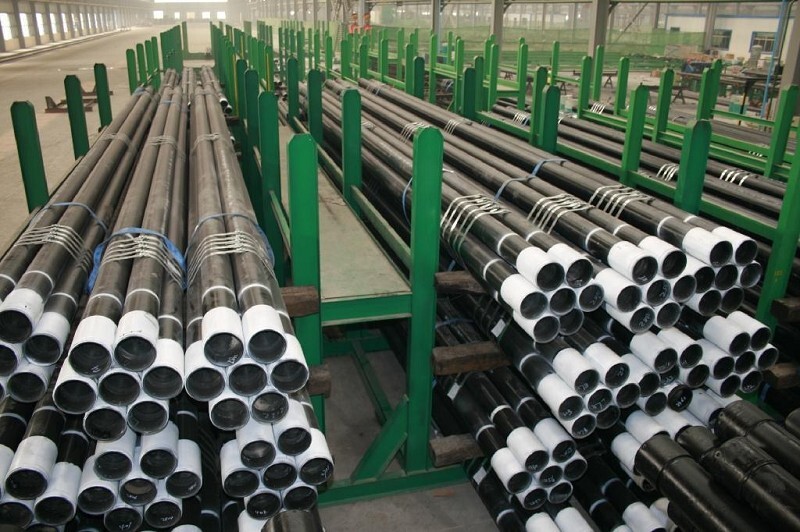

Line Pipe:

Key Standards: API 5L (PSL1/PSL2).

Critical Characteristics: Specifically designed for long-distance oil & gas transmission, emphasizing toughness, weldability, and resistance to Hydrogen Induced Cracking (HIC).

Applications: Onshore and subsea oil & gas transmission trunk lines.

2. Manufacturing Process Comparison:

Hot-Rolled (Hot-Expanded) Seamless Pipe: Large diameter, heavy wall thickness, lower cost. Suitable for large-diameter transmission pipelines.

Cold-Drawn (Cold-Rolled) Seamless Pipe: High dimensional accuracy, excellent surface finish, superior mechanical properties. Suitable for precision instruments, hydraulic systems.

II. Welded Steel Pipes: The Preferred Choice for Economy and Large-Diameter Solutions

Core Value Proposition: Produced via high-efficiency forming and welding processes, offering unparalleled cost and delivery advantages for large-diameter, thin-wall applications. Modern technology enables high-quality welded pipes to replace some seamless pipe applications.

1. Classification by Process:

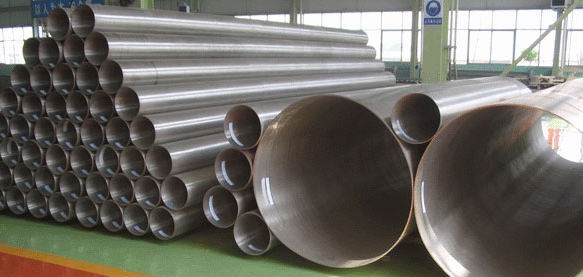

Longitudinal Submerged Arc Welded (LSAW) Pipe:

Process: Steel plate is rolled and welded along its length. Common methods: JCOE and UOE forming.

Characteristics: Large diameter (typically up to 24"+), strong capability for heavy walls, good pressure-bearing performance.

Standards & Applications: API 5L. Used for oil & gas trunk lines, structural supports (e.g., wind turbine towers).

Spiral Submerged Arc Welded (SSAW) Pipe:

Process: Steel strip is spirally wound and welded.

Characteristics: Flexible diameter range, can produce different diameters from the same strip width. However, the long weld seam results in higher internal stress.

Applications: Low-pressure transmission (water, slurry), piling, utility tunnels.

Electric Resistance Welded (ERW) / High-Frequency Welded (HFW) Pipe:

Process: Edges of the strip are heated by high-frequency current and forged together without filler metal.

Characteristics: High production efficiency, low cost, good weld quality. High dimensional accuracy.

Standards & Evolution: Traditional ERW had reliability concerns. Modern High-Quality ERW/HFW pipes undergo full-body heat treatment, offering performance close to seamless, widely used in mid-low pressure oil & gas and fluid transmission.

III. Key Selection Decision Tree

For initial screening based on project requirements, follow this path:

Start: Project Requirement Analysis for Piping

Question 1: Working Pressure & Reliability Requirements?

If High Pressure, High Fatigue, Critical Safety Application -> Primary Choice: Seamless Steel Pipe.

If Medium-Low Pressure, General Conveyance, Large Diameter, Cost-Sensitive -> Primary Choice: Welded Steel Pipe.

Path for Seamless Pipe -> Question 2: Service Environment?

High Temperature (>400°C) -> Alloy Steel Pipe (ASTM A335)

Corrosive Media -> Stainless Steel Pipe (ASTM A312/A213)

Oil & Gas Transmission -> Line Pipe (API 5L)

General Service -> Carbon Steel Pipe (ASTM A106/A53)

Path for Welded Pipe -> Question 3: Diameter & Wall Thickness Requirements?

Large Diameter (>24"), Heavy Wall -> Longitudinal Welded Pipe (LSAW)

Low-Pressure Transmission, Piling -> Spiral Welded Pipe (SSAW)

Small-Medium Diameter, High Cost-Effectiveness, Modern High-Quality Process -> Straight Seam Welded Pipe (HFW/ERW)

IV. Beyond the Product: Value Considerations for B2B Procurement

Beyond technical selection, B2B decision-makers should comprehensively evaluate:

Certifications & Compliance: Does the manufacturer hold mandatory or industry-recognized certifications like API Monogram, PED 2014/68/EU, CE, ISO 9001?

Testing & Quality Assurance Capability: Does the manufacturer possess comprehensive in-line inspection (e.g., UT, ET) and offline lab capabilities (chemical analysis, mechanical testing, metallography, HIC/SSC testing)? Can they provide EN 10204 3.1/3.2 material certificates?

Integrated Supply Solution: Can they provide matching supply from pipes to fittings (flanges, elbows, tees), ensuring material consistency, traceability, and interface compatibility?

Depth of Technical Collaboration: Can the supplier engage in front-end design, offering material selection support, corrosion assessment, and Welding Procedure Specification/Qualification (WPS/PQR) support?

Steel pipe selection is a systematic engineering task requiring the optimal balance among "Technical Performance (Pressure, Media, Temperature) - Total Life Cycle Cost (LCC) - Supply Security & Compliance Risk". Understanding the fundamental differences between seamless and welded pipes, and mastering the core applications of different materials and standards, is the first step toward an informed decision. Ultimately, choosing a strategic supplier capable of providing technical collaboration, quality reliability, and supply chain stability offers long-term value far exceeding the initial product unit price.
