How Sanitary Check Valves Create an Aseptic Barrier for the Food and Pharmaceutical Industries

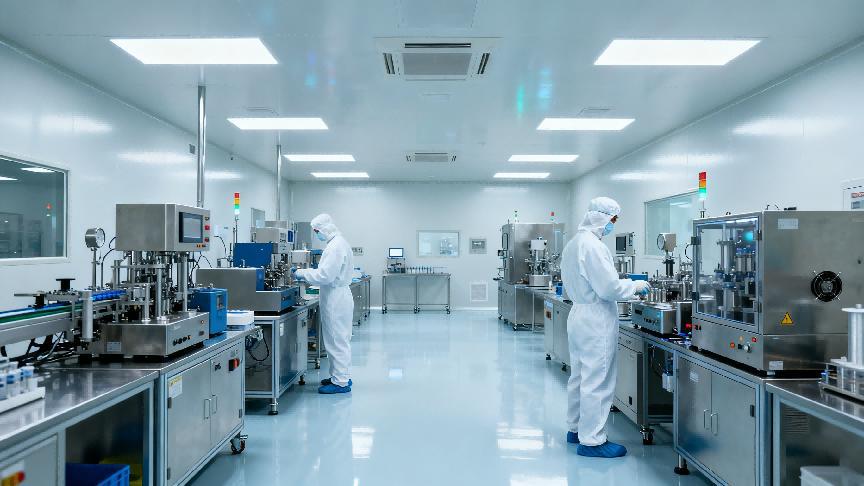

In a modern dairy filling line or biopharmaceutical fermentation process, the requirement for medium purity reaches near-stringent levels. Here, even the slightest risk of contamination or medium crossover could lead to the rejection of an entire batch. HAINER STEEL recently successfully delivered a batch of 316L stainless steel sanitary check valves. Manufactured with fully automated welding and electropolishing technology, these products will serve as key guardians in the customer's new production line, ensuring one-directional flow and preventing backflow contamination.

The Invisible Guardian of Aseptic Systems - The Unique Mission of Sanitary Check Valves

Different from industrial valves, the core mission of sanitary check valves goes beyond the basic function of "preventing backflow"; it also bears the crucial task of "maintaining system sterility integrity.

In the food, beverage, and pharmaceutical industries, valve performance is directly related to the safety of the final product. A qualified sanitary check valve must be structurally designed for zero dead legs, easy cleaning, and resistance to high-frequency Chemical Cleaning and Steam Sterilization (CIP/SIP). Any tiny crevice or rough surface can become a breeding ground for microorganisms.

Material and Surface Treatment - Building the First Line of Defense

The safety of the material and the smoothness of the surface are the lifelines of a sanitary valve.

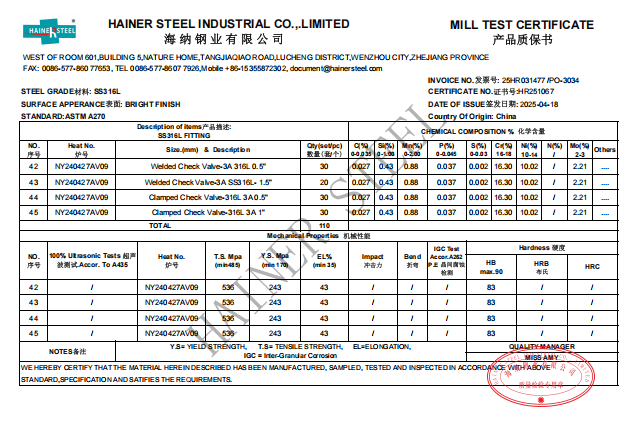

HAINER STEEL selects 316L ultra-low carbon stainless steel conforming to ASTM A270 standards and ensures that all product contact surfaces undergo electropolishing, achieving a stable surface roughness (Ra) of less than 0.8 micrometers. This physically prevents soil adhesion.

Why 316L?: Compared to standard 316 stainless steel, 316L has a lower carbon content. This characteristic minimizes the risk of "intergranular corrosion" during welding and heat treatment processes. This ensures the valve maintains excellent corrosion resistance even after repeated high-temperature sterilization cycles, preventing contamination from corrosion products leaching into the medium.

The Magic of Electropolishing (EP): This is not merely cosmetic; it's a functional process. Through electrochemical action, it smoothens the surface, removes microscopic burrs, and forms a chromium-rich passive layer. This layer is extremely dense and smooth, providing both corrosion resistance and ease of cleaning, forming the foundation for efficient CIP/SIP.

Design Philosophy - Engineered for "Cleanability"

Every design detail of a sanitary check valve revolves around the principles of "non-residue, easy drainage, and easy disassembly."

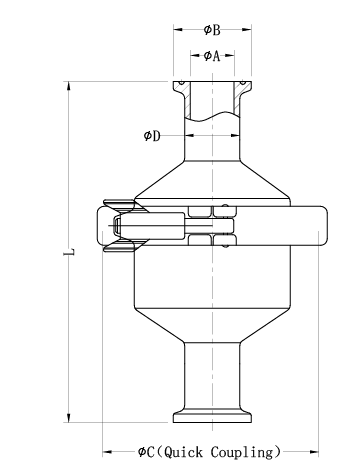

Quick Clamp Connection: Replacing traditional threaded or flanged connections, the internationally recognized Tri-Clamp (Tri-Clover Clamp) method is adopted. This not only allows for fast, reliable, and sealed connections but, more importantly, the connection point itself is smooth and flush, constituting a sanitary interface.

Spring and Disc Design: An internal spring design is used to avoid contact with the external pipeline environment. The sealing pair between the disc (typically butterfly or ball type) and the valve seat is precision lapped. This ensures sensitive actuation at very low cracking pressure and instant, tight sealing upon reverse pressure.

In the biopharmaceutical field, suppliers are not just product providers but part of the quality system. Looking ahead, HAINER STEEL is actively investing in advanced coating technologies and intelligent monitoring solutions, aiming to provide customers with the next generation of sanitary fluid equipment capable of self-sensing and self-diagnosis.
